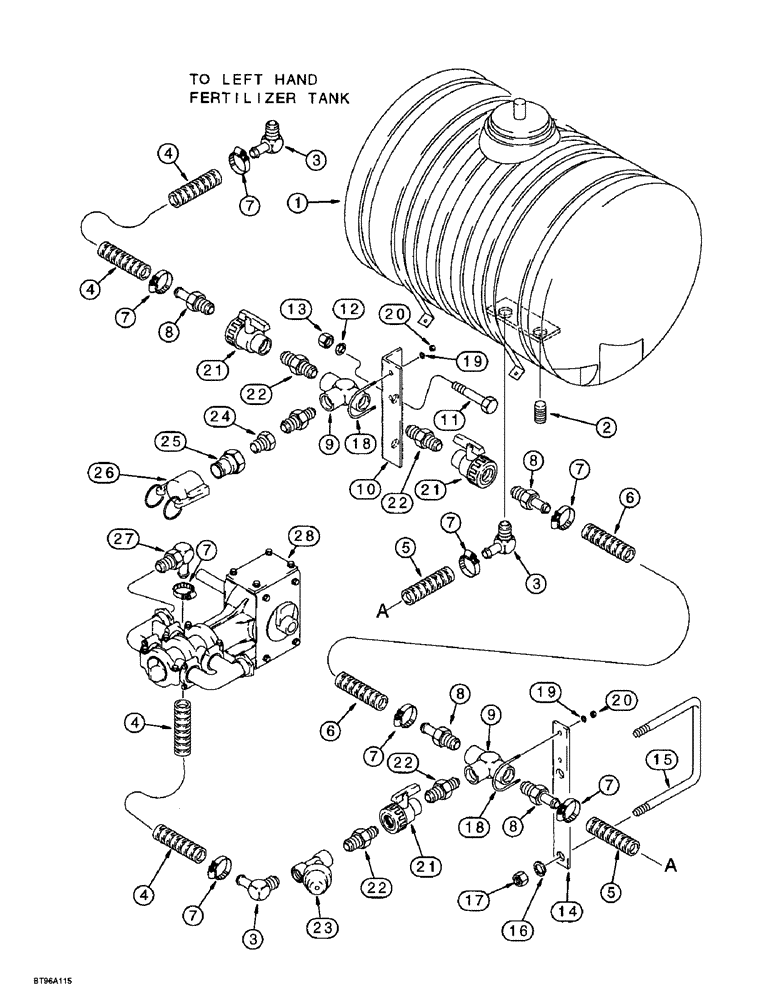

Запчасти Case IH 955 (9F-018) - LIQUID FERTILIZER PISTON PUMP SYSTEM, TANK AND SUCTION LINES (09) - CHASSIS/ATTACHMENTS

1

109683A1

HOPPER

TANK ASSEMBLY - liquid fertilizer, 200 gallon

2шт.

See page 9F-39, items 1 through 18, for tank components, supports and mounting brackets.

1шт.

2

353-207

PLUG,Sq Drive, 3/4"-14 NPT

- square drive, 3/4 inch PT

2шт.

3

225447A1

ELBOW

- 90 degree, hose barb, special

3шт.

4

225445A1

HOSE,38.10 mm ID x 550.00 mm

- 550 mm (21-5/8 inch) long, cut from 1264065C1 bulk hose, see below

2шт.

5

225443A1

HOSE,38.10 mm ID x 1700.00 mm

- 1700 mm (66-15/16 inch) long, cut from 1264065C1 bulk hose, see below

1шт.

6

225444A1

HOSE,38.10 mm ID x 1800.00 mm

- 1800 mm (70-7/8 inch) long, cut from 1264065C1 bulk hose, see below

1шт.

7

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

8шт.

8

1264072C1

FITTING

- barbed, straight, special

4шт.

9

1264067C1

FITTING

TEE - female, special

2шт.

10

128172A1

ANGLE

BRACKET - mounting, fertilizer hose

1шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

12

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

13

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

14

230334A1

PLATE

STRAP - hose support

1шт.

15

133351A1

U-BOLT,1/2" - 13 x 179.20mm W x 210mm L

- 1/2 inch NC, 7 x 7 inch

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18

1264087C1

U-BOLT

UR .313 2.188W 3.13D

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

21

1980002C1

VALVE,1-1/4" Single Union Poly Valve

- shutoff

3шт.

22

1264070C1

FITTING

NIPPLE - straight, special

4шт.

23

225446A1

STRAINER ASSY.

FITTING - strainer, special

1шт.

24

225448A1

NIPPLE, LUBE

NIPPLE - reducer, special

1шт.

25

1264069C1

FITTING

ADAPTER - straight

1шт.

26

1264066C1

CAP

COVER - dust

1шт.

27

225449A1

FITTING

ELBOW - 90 degree, hose barb, special, at pump inlet

1шт.

28

225440A1

PUMP

ASSEMBLY - piston, liquid fertilizer, per Case number 12330101, this part is NSS

1шт.

1264065C1

HOSE

- bulk, 38 (1-1/2) ID x 30480 mm (1200 inch) long

1шт.
