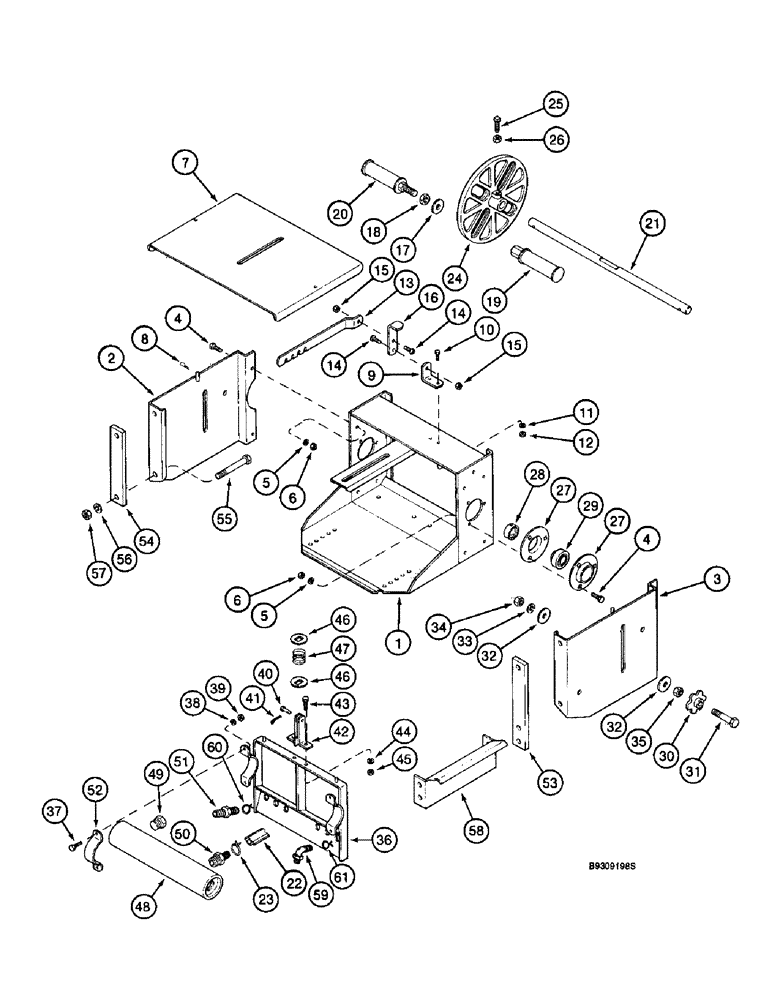

Запчасти Case IH 955 (9F-010) - LIQUID FERTILIZER SQUEEZE PUMP ASSEMBLY, ALL RIGID, VERTICAL (09) - CHASSIS/ATTACHMENTS

1250764C93

PUMP

ASSEMBLY - squeeze (4, 6 and 12 row)

1шт.

1250763C93

PUMP

ASSEMBLY - squeeze (8 and 16 row)

1шт.

1

1261292C1

FRAME

- main (4, 6 and 12 row)

1шт.

1

1261308C1

FRAME

- main (8 and 16 row)

1шт.

2

1261293C2

PLATE

- side, left-hand

1шт.

3

1261294C2

PLATE

- side, right-hand

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10шт.

7

1261307C1

CHANNEL

COVER - pump (4, 6 and 12 row)

1шт.

7

1261306C1

CHANNEL

COVER - pump (8 and 16 row)

1шт.

8

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

9

64690C1

ANGLE

BRACKET - lever

1шт.

10

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

13

64692C1

SUPPORT

BRACKET - tightener

1шт.

14

470-13112

SCREW,Slotted Pan Hd, 5/16"-18 x 3/4"

- machine, pan head slotted, 5/16 NC x 3/4 inch

2шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

16

64691C1

ANGLE

BRACKET - tightener

1шт.

17

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch (4, 6 and 12 row)

4шт.

18

325-159

JAM NUT,Jam, 9/16"-18, G5

- hex, jam, 9/16 inch NF (4, 6 and 12 row)

4шт.

19

1261290C1

ROLLER

- pump shaft (4, 6 and 12 row)

4шт.

19

1261303C1

ROLLER

- pump shaft (8 and 16 row)

4шт.

20

1261291C1

ROLLER

- pump shaft (4, 6 and 12 row)

4шт.

20

1261302C1

ROLLER

- pump shaft (8 and 16 row)

4шт.

21

1261287C1

ROD

SHAFT - pump drive (4, 6 and 12 row)

1шт.

21

1261288C1

ROD

SHAFT - pump drive (8 and 16 row)

1шт.

22

64693C1

HOSE,0.50" ID x 21.50"

1шт.

22

134283C1

HOSE,0.38" ID x 21.50"

0.38" ID x 21.50"

1шт.

22

134284C1

HOSE

- 16 (5/8) ID x 546 mm (21-1/2 inch) long

1шт.

23

134276C1

CLAMP

- spring type (Used with 1/2 inch ID hose)

1шт.

23

134277C1

CLAMP

- spring type (Used with 3/8 inch ID hose)

1шт.

23

134278C1

CLAMP

- spring type (Used with 5/8 inch ID hose)

1шт.

24

1261289C1

WHEEL

CYLINDER - wheel

1шт.

25

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, square head, 3/8 NC x 1 inch, cup point

2шт.

26

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

27

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE - bearing collar

4шт.

28

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

- lock, bearing, includes set screw

2шт.

29

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball

2шт.

30

472344R3

SPROCKET

- idler (8 and 16 row)

3шт.

31

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (8 and 16 row)

3шт.

32

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") (8 and 16 row) 1/2", SAE

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (8 and 16 row) 1/2"

3шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (8 and 16 row) 1/2"-13, G5

3шт.

35

325-108

NUT,1/2"-13, G5

- hex, jam, 1/2 inch NC, if used

3шт.

36

1261269C1

PLATE

- front (4, 6 and 12 row)

1шт.

36

1261305C1

PLATE

- front (8 and 16 row)

1шт.

37

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

39

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

40

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

41

432-416

COTTER PIN,1/16" x 1"

1/16" x 1"

1шт.

42

1261298C1

BRACKET

- tightener

1шт.

43

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

44

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

45

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

46

64698C1

THRUST WASHER

- plate spring

1шт.

47

64699C1

SPRING

- extension

1шт.

48

1261268C2

MANIFOLD

- pump (4, 6 and 12 row)

1шт.

48

1261304C2

MANIFOLD

- pump (8 and 16 row)

1шт.

49

64696C1

PLUG

- pump manifold (4, 6 and 12 row)

2шт.

50

64695C1

FITTING

CONNECTOR - barbed (Used with 1/2 inch ID hose)

1шт.

50

134274C1

FITTING

CONNECTOR - barbed (Used with 3/8 inch ID hose)

1шт.

50

134275C1

FITTING

CONNECTOR - barbed (Used with 5/8 inch ID hose)

1шт.

51

64694C1

FITTING

CONNECTOR - barbed, 1/2 x 1/2 inch

1шт.

51

134280C1

FITTING

CONNECTOR - barbed, 1/2 x 3/8 inch

1шт.

51

134281C1

FITTING

CONNECTOR - barbed, 1/2 x 5/8 inch

1шт.

52

64697C1

CLAMP

- manifold retaining

2шт.

53

1261295C2

PLATE

BRACKET - retaining (8 and 16 row)

1шт.

54

1261296C2

PLATE

BRACKET - retaining

1шт.

55

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

57

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

58

1261297C1

SUPPORT

GUARD - hose (8 and 16 row)

1шт.

59

134271C1

ELBOW

- 90 degree, 1 stem x 3/4 inch PT

2шт.

60

214-1313

HOSE CLAMP,#13, 13/16", Spring

CLAMP - spring type, 13/16 inch

1шт.

61

214-1320

HOSE CLAMP,#20, 1 1/4", Spring

CLAMP - spring type, 1-1/4 inch

1шт.
