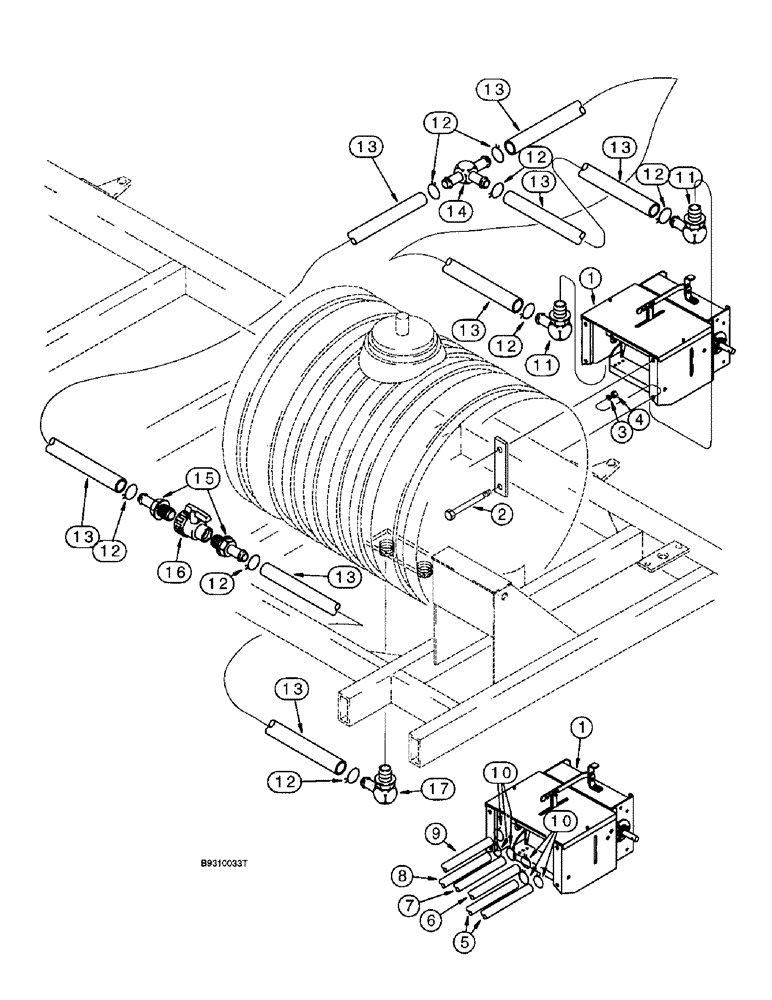

Запчасти Case IH 955 (9F-006) - LIQUID FERTILIZER SQUEEZE PUMP SYSTEM, 8 ROW WIDE AND 12 ROW (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP ASSEMBLY - squeeze, see page 9F-11 and 9F-13 for correct assembly and parts list
1-2шт.
2
413-8104
BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5
- hex, 1/2 NC x 6-1/2 inch
8шт.
3
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
8шт.
4
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
8шт.
5
NSS
NOT SOLD SEPARAT
HOSE - 1/2 ID x 70-7/8 inch, cut from 134331C1, see below
2шт.
See item 22, page 9F-81, for the liquid fertilizer tube that connects to hoses.
1шт.
6
NSS
NOT SOLD SEPARAT
HOSE - 1/2 ID x 94-1/2 inch, cut from 134331C1, see below
1шт.
See item 22, page 9F-81, for the liquid fertilizer tube that connects to hoses.
1шт.
7
NSS
NOT SOLD SEPARAT
HOSE - 1/2 ID x 189 inch, cut from 134331C1, see below
1шт.
See item 22, page 9F-81, for the liquid fertilizer tube that connects to hoses.
1шт.
8
NSS
NOT SOLD SEPARAT
HOSE - 1/2 ID x 212-5/8 inch, cut from 134331C1, see below
1шт.
See item 22, page 9F-81, for the liquid fertilizer tube that connects to hoses.
1шт.
9
NSS
NOT SOLD SEPARAT
HOSE - 1/2 ID x 254-1/4 inch, cut from 134331C1, see below
1шт.
See item 22, page 9F-81, for the liquid fertilizer tube that connects to hoses.
1шт.
10
214-1313
HOSE CLAMP,#13, 13/16", Spring
CLAMP - spring type, 13/16 inch
12шт.
11
134271C1
ELBOW
- 90 degree, 1 stem x 3/4 inch PT
2шт.
12
214-1424
HOSE CLAMP,#24, 1.06" - 2", Type F Worm
CLAMP, HOSE, #24, 1.06/2.00 Type F Worm
8шт.
13
REF
INSTRUCTION
HOSE - 1 ID x 12-1/16 inch, cut from 134329C1, see below
4шт.
14
1261309C1
TEE
- barbed
1шт.
15
134270C1
FITTING
- straight
3шт.
16
1345067C1
SHUT-OFF VALVE,3/4" Single Union Poly Valve
VALVE - shutoff
2шт.
17
134271C1
ELBOW
- 90 degree, 1 stem x 3/4 inch PT
1шт.
134331C1
HOSE
- bulk, transparent, 13 (1/2) ID x 30480 mm (1200 inch) long
1шт.
134329C1
HOSE
- bulk, transparent, 25 (1) ID x 1270 mm (50 inch) long
1шт.
Выбрано товаров: 24
