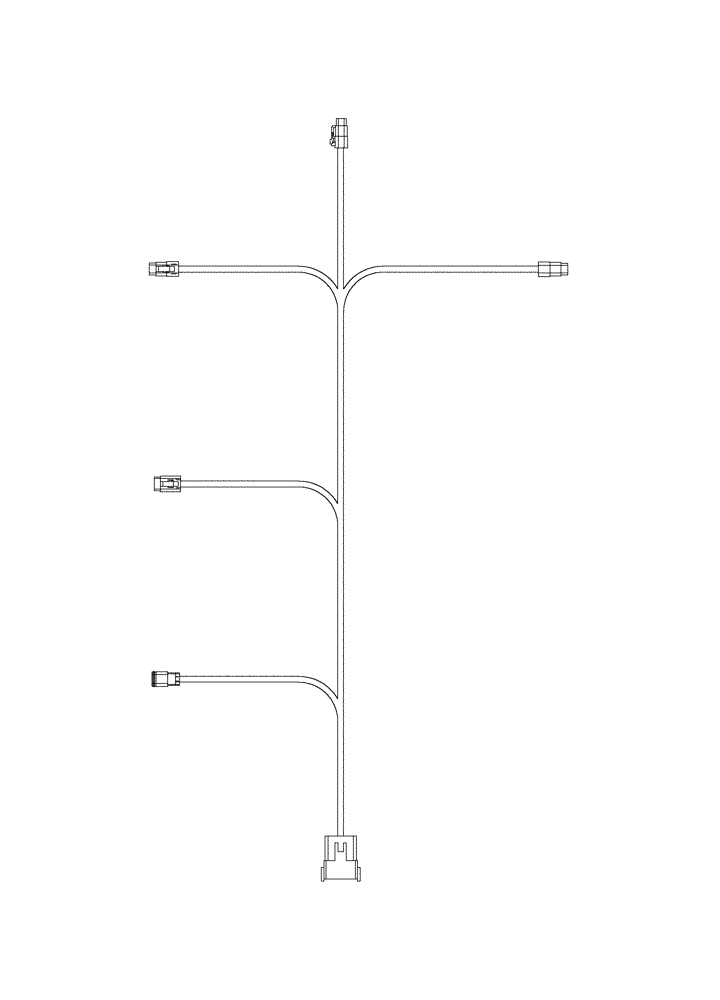

Запчасти Case IH 955 (4-44) - HARNESS, AFS PLANTER, 12/23 SRC (04) - ELECTRICAL SYSTEMS

1

323318A1

HARNESS

- Cyclo fertilizer, 12/23 only, Harness connects to the following (not illustrated) items

1шт.

2

323288A1

HARNESS

- Cyclo MCC, connects to the following (not illustrated) items

1шт.

3

188105A1

SOLENOID

- without diode, 12 volt, DC, harness connects to the following (not illustrated) items

1шт.

4

296164A1

SENSOR

KIT - application rate sensor, harness connects to the following (not illustrated) items

1шт.

5

295765A1

VALVE

- ball, electric, section control, harness connects to the following (not illustrated) items

1шт.

6

295765A1

VALVE

- ball, electric, section control, harness connects to the following (not illustrated) items

1шт.

7

295765A1

VALVE

- ball, electric, section control, harness connects to the following (not illustrated) items

1шт.
