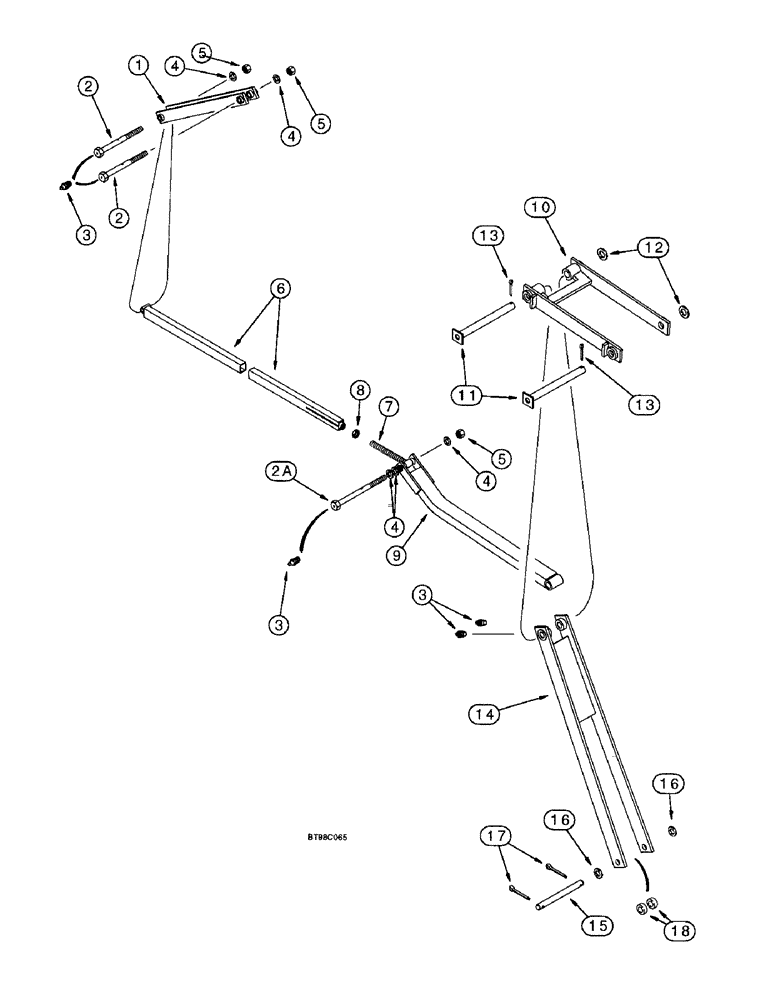

Запчасти Case IH 955 (9E-21A) - ROW MARKER LIFT MECHANISM, 24 ROW NARROW - FRONT FOLD, P.I.N (09) - CHASSIS/ATTACHMENTS

1

308679A1

LINKAGE

ARM - row marker, upper

1шт.

2

308670A1

BOLT

- special, 5 inch long

2шт.

2a

308693A1

BOLT

- special, 6 inch long

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

5шт.

4

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

5шт.

5

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

3шт.

6

308680A1

LINKAGE

LINK - marker, upper

1шт.

7

308688A1

EYEBOLT

- adjustment, link

1шт.

8

425-1516

JAM NUT,Jam, 1"-14, G5

- hex, jam, 1 inch NF

1шт.

9

308678A1

LINKAGE

LINK - marker, middle

1шт.

10

308686A1

ARM ASSY.

ARM - marker, rear

1шт.

11

308687A1

PIN

- special, 13-7/8 inch long, link to lift arm

2шт.

12

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 1/8 inch

2шт.

13

432-2432

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

2шт.

14

308677A1

LINKAGE

LINK - marker, lower

1шт.

15

136727A1

PIN

- pivot, 1 x 8 inch

1шт.

16

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

2шт.

17

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

18

136709A1

SPACER

- cylinder, closed end

2шт.
