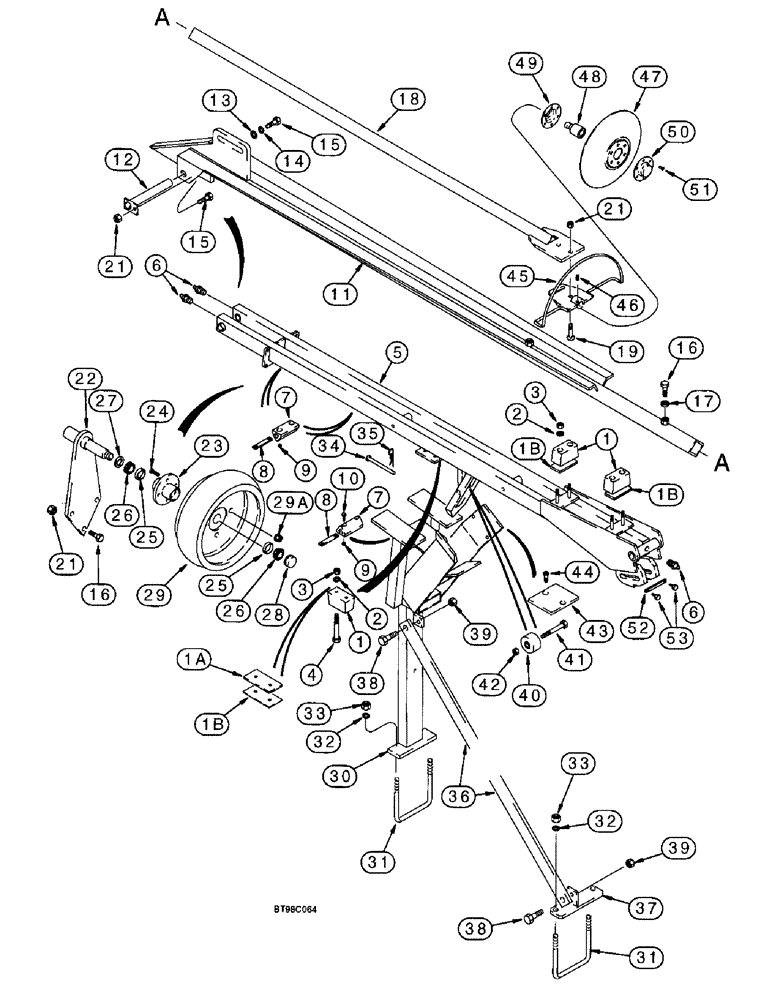

Запчасти Case IH 955 (9E-19A) - ROW MARKER ARM AND EXTENSION, 24 ROW NARROW - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

308681A1

BUMPER

STOP - rubber, at center marker arm

4шт.

1a

308683A1

SHIM

- stop, 0.179 inch thick

1шт.

1b

308684A1

SHIM

- stop, 0.375 inch thick

4шт.

2

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

3

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

8шт.

4

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

4шт.

5

308685A1

ARM ASSY.

ARM - center marker

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

7

308690A1

BUMPER

- rubber, at center marker arm and support stand

3шт.

8

308689A1

BAR ASSY.

BAR - retainer, bumper

3шт.

9

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

6шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

11

308676A1

BRACKET

EXTENSION - outer marker arm

1шт.

12

126223A1

PIN

- pivot, 1-1/4 x 10 inch, center and outer arm

1шт.

13

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

16

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

5шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18

313024A1

ARM

- marker extension

1шт.

19

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

2шт.

21

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

6шт.

22

126227A1

BRACKET

- wheel

1шт.

126235A1

HUB

ASSEMBLY - wheel

1шт.

23

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

24

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

BOLT - wheel

4шт.

25

572564R1

BEARING CUP

CUP - tapered roller bearing

2шт.

26

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - tapered roller bearing

2шт.

27

97859C1

SEAL

- dust

1шт.

28

1969160C1

CAP

- hub

1шт.

29

126233A1

WHEEL

- marker arm

1шт.

29a

453770R1

WHEEL NUT

- hex, 1/2 inch NF

4шт.

30

308673A1

SUPPORT

STAND - marker support

1шт.

31

542324R2

U-BOLT,U, 3/4" - 10 x 214.90mm

- 3/4 inch NC

2шт.

32

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

33

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

34

439-18104

HEADED PIN,1/2" x 6 1/2"

PIN - headed, 1/2 x 6-1/2 inch, grade 2

1шт.

35

1978738C1

HAIR PIN COTTER

3/16"

1шт.

36

175589A1

BAR

BRACE - support stand

1шт.

37

175592A1

BRACKET

-, Serial Range: brace-frame

1шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

39

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

40

308671A1

ROLLER

- marker arm

1шт.

41

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

42

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

43

308691A1

BUMPER

- arm, plastic, at support stand

2шт.

44

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

BOLT - hex socket, 3/8 NC x 1 inch

4шт.

45

120606A2

PLATE ASSY.

PLATE - adjusting, with guard

1шт.

46

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

1шт.

120608A1

DISC

ASSEMBLY - 14 inch

1шт.

47

487298R1

DISC

- 14 inch

1шт.

48

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING - ball

1шт.

49

468009R1

RETAINER

HOUSING - bearing, inner

1шт.

50

487081R1

COVER

HOUSING - bearing, outer

1шт.

51

45-512

RIVET,But Hd, 5/16" x 3/4"

- button head, 5/16 x 3/4 inch

6шт.

52

315501A1

SUPPORT

STOP - arm, rubber

1шт.

53

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

2шт.
