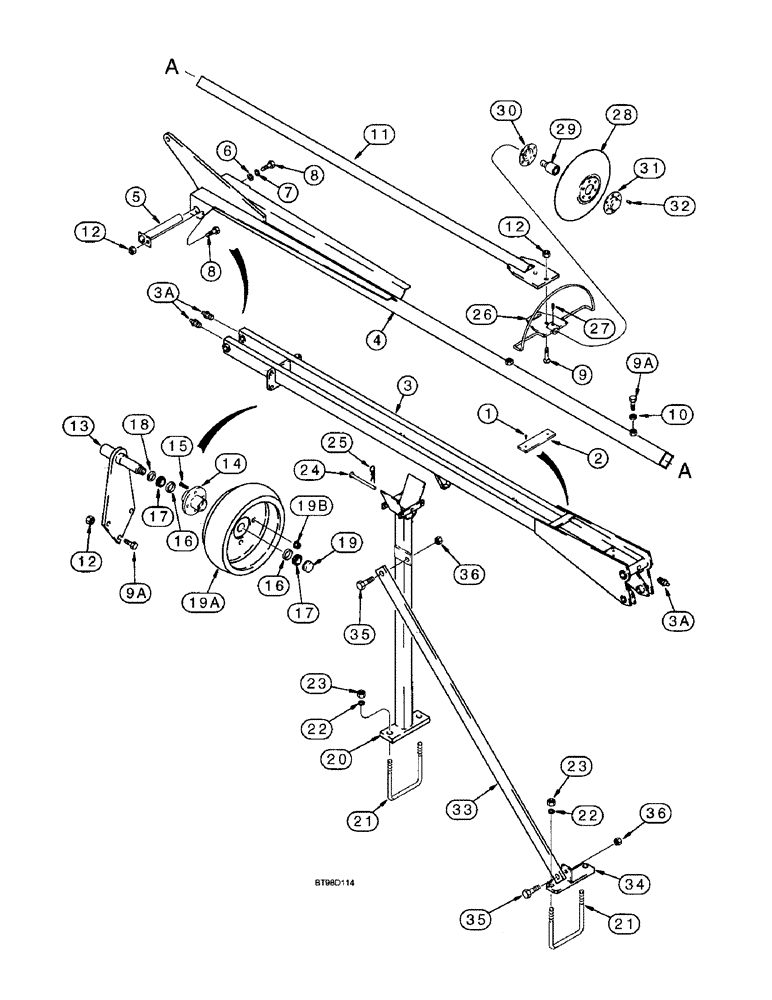

Запчасти Case IH 955 (9E-18) - ROW MARKER ARM AND EXTENSION, 24 ROW NARROW - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

151-521

RIVET,Pop, 3/16" x .690"

- break mandrel, 3/16 x 11/16 inch

2шт.

2

126213A1

STOP

CUSHION - rubber

2шт.

3

126219A1

ARM ASSY.

ARM - center marker

1шт.

3a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

4

126220A1

EXTENSION

- outer marker arm

1шт.

5

126223A1

PIN

- pivot, 1-1/4 x 10 inch, center and outer arm

1шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

9

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

2шт.

9a

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

5шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

126214A1

ARM

- disc extension

1шт.

12

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

6шт.

13

126227A1

BRACKET

- wheel

1шт.

126235A1

HUB

ASSEMBLY - wheel

1шт.

14

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

15

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

BOLT - wheel

4шт.

16

572564R1

BEARING CUP

CUP - tapered roller bearing

2шт.

17

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - tapered roller bearing

2шт.

18

97859C1

SEAL

- dust

1шт.

19

1969160C1

CAP

- hub

1шт.

19a

126233A1

WHEEL

- marker arm

1шт.

19b

453770R1

WHEEL NUT

- hex, 1/2 inch NF

4шт.

20

126226A1

STAND

- marker support

1шт.

21

542324R2

U-BOLT,U, 3/4" - 10 x 214.90mm

- 3/4 inch NC

2шт.

22

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

23

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

24

439-18104

HEADED PIN,1/2" x 6 1/2"

PIN - headed, 1/2 x 6-1/2 inch, grade 2

1шт.

25

1978738C1

HAIR PIN COTTER

3/16"

1шт.

26

120606A2

PLATE ASSY.

PLATE - adjusting, with guard

1шт.

27

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

1шт.

120608A1

DISC

ASSEMBLY - 14 inch

1шт.

28

487298R1

DISC

- 14 inch

1шт.

29

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING - ball

1шт.

30

468009R1

RETAINER

HOUSING - bearing, inner

1шт.

31

487081R1

COVER

HOUSING - bearing, outer

1шт.

32

45-512

RIVET,But Hd, 5/16" x 3/4"

- button head, 5/16 x 3/4 inch

6шт.

33

175589A1

BAR

BRACE - support stand

1шт.

34

175592A1

BRACKET

-, Serial Range: brace-frame

1шт.

35

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

36

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.
