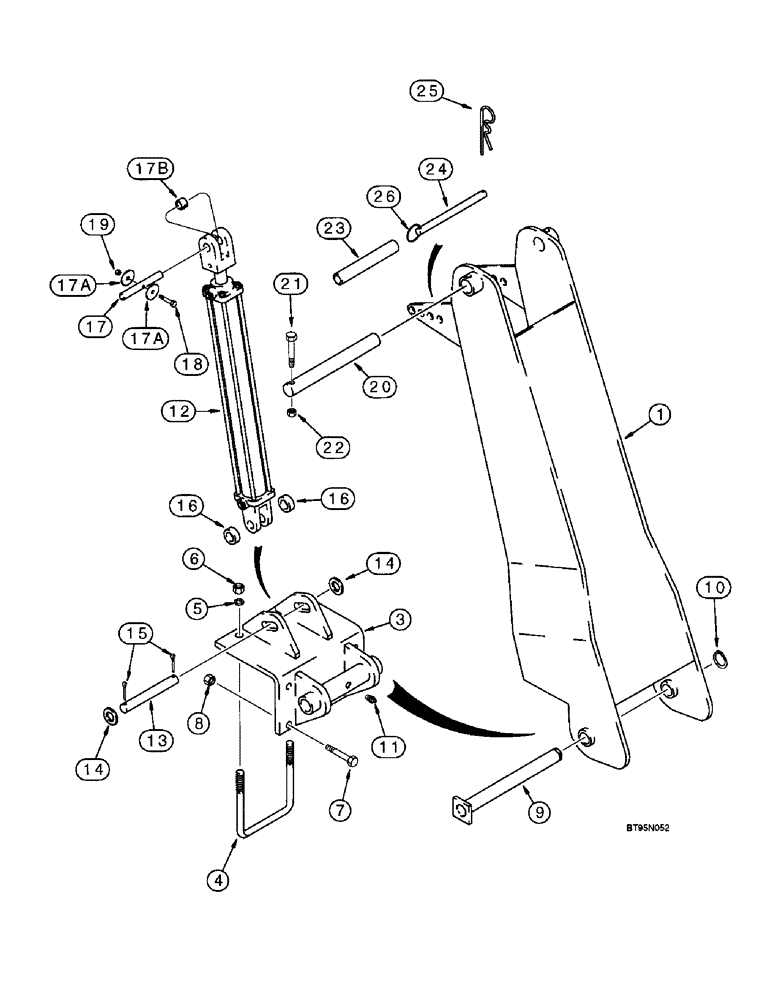

Запчасти Case IH 955 (9E-16) - ROW MARKER LIFT ARM, 24 ROW NARROW - FRONT FOLD, PRIOR TO (09) - CHASSIS/ATTACHMENTS

1

126215A1

ARM

- lift, includes decal

1шт.

2

1254154C2

WARNING DECAL

DECAL - Warning, Keep away. Markers actuate automatically, not shown, see page 9F-115, item 8

1шт.

3

126216A1

BRACKET

- pivot, lift arm

1шт.

4

542324R2

U-BOLT,U, 3/4" - 10 x 214.90mm

- 3/4 inch NC

1шт.

5

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

6

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

7

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

4шт.

8

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.

9

126225A1

PIN

- pivot, 1-1/2 x 14-3/4 inch, lift arm

1шт.

10

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

12

127061A1

CYLINDER

ASSEMBLY - 76 (3) ID x 610 mm (24 inch) stroke, lift arm, parts list page 8-97

1шт.

13

136727A1

PIN

- pivot, 1 x 8 inch, closed end

1шт.

14

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

2шт.

15

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

16

136709A1

SPACER

- cylinder mounting, closed end

2шт.

17

175587A1

PIN

- cylinder pivot, 1 x 8-1/2 inch

1шт.

17a

175594A1

WASHER

- special

2шт.

17b

175588A1

SPACER

- cylinder pin, at lift arm

2шт.

18

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

19

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

20

126246A1

PIN

- 1-1/2 x 14-5/8 inch, inner arm

1шт.

21

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

22

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

23

136716A1

TUBE

- 1-5/16 OD x 8-3/16 inch

2шт.

24

136743A1

PIN

- pivot, 3/4 x 10-1/4 inch

2шт.

25

1978738C1

HAIR PIN COTTER

3/16", retaining

2шт.

26

175583A1

RING

- split, 1-3/4 inch

2шт.
