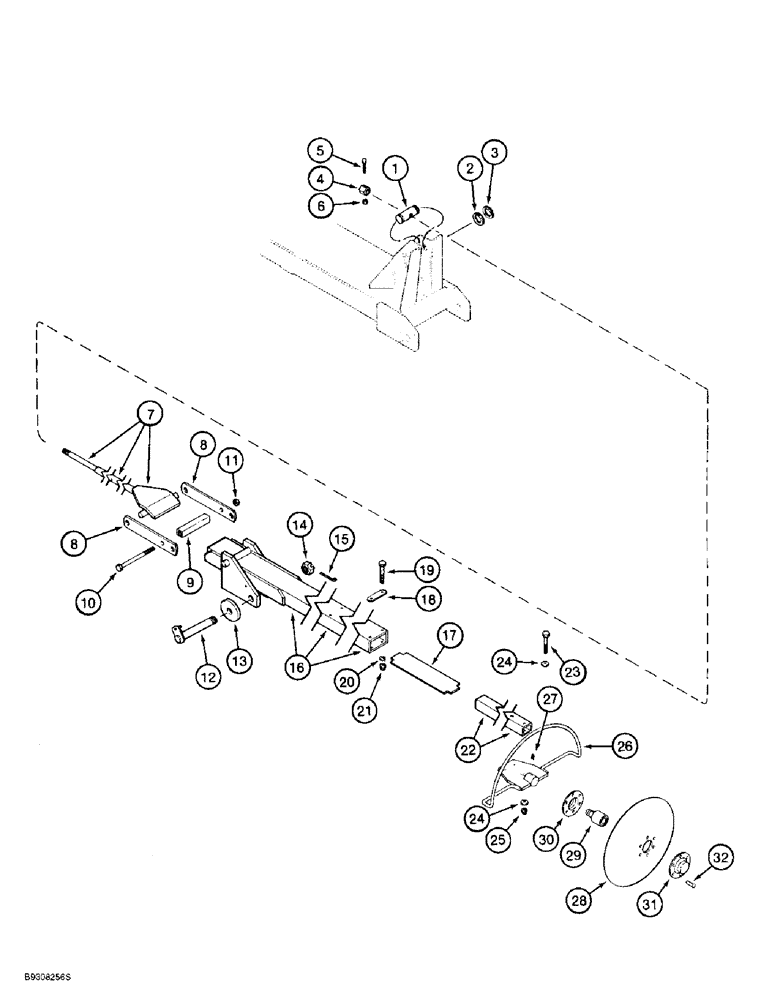

Запчасти Case IH 955 (9E-14) - ROW MARKER OUTER SECTION, 16 ROW NARROW - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1268261C1

TRUNNION

- marker link

2шт.

2

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

4шт.

3

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

4шт.

4

1279144C1

NUT

- marker link

2шт.

5

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

7

1268064C2

LINK ASSY.

LINK - support

2шт.

8

1268063C1

BAR

- link, actuating

4шт.

9

1268323C1

TUBE,156 mm Length

- spacer

2шт.

10

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

2шт.

11

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

2шт.

12

1268316C1

PIN

- lock

2шт.

13

1268322C1

WASHER

WASHER - spacer

4шт.

14

519250R1

SLOTTED NUT

- hex, slotted, 1-1/4 inch NF

2шт.

15

432-836

COTTER PIN,1/8" x 2 1/4"

1/8" x 2 1/4"

2шт.

16

1279514C1

FUNNEL

FRAME - marker, lower

2шт.

17

1268321C1

BAR

SHIM - support

4шт.

18

1268067C1

BAR

- washer

8шт.

19

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

8шт.

20

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

8шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

22

1268052C2

TUBE,1550 mm Length

ARM - adjusting, marker, 1550 mm (61 inch) long

2шт.

23

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

24

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

25

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

26

120606A2

PLATE ASSY.

PLATE - adjusting, with guard

2шт.

27

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

2шт.

120608A1

DISC

ASSEMBLY - 14 inch, marker

2шт.

28

487298R1

DISC

- 14 inch, marker

1шт.

29

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING - ball

1шт.

30

468009R1

RETAINER

HOUSING - bearing, inner, inner

1шт.

31

487081R1

COVER

HOUSING - bearing, outer, outer

1шт.

32

45-512

RIVET,But Hd, 5/16" x 3/4"

- button head, 5/16 x 3/4 inch

6шт.
