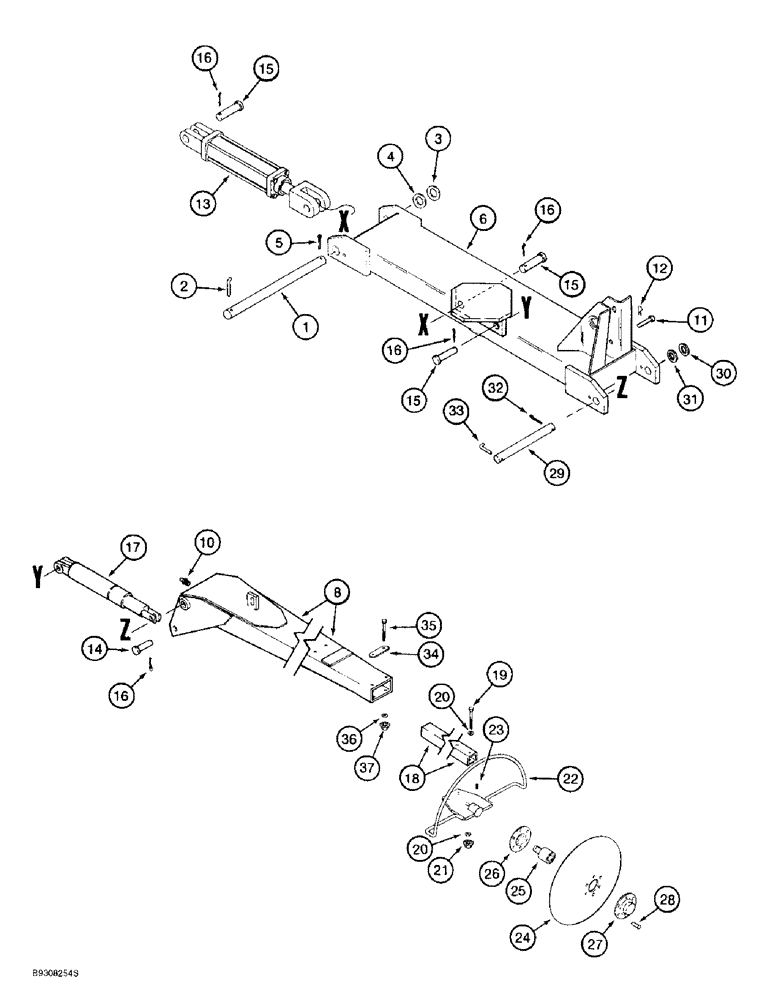

Запчасти Case IH 955 (9E-08) - ROW MARKER, 12 ROW NARROW - FRONT FOLD, 12 ROW WIDE - FRONT (09) - CHASSIS/ATTACHMENTS

1

120464A1

PIN

- pivot, inner arm

2шт.

2

491601R3

PIN

- pivot lock

2шт.

3

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

- flat, 1-17/32 x 2-1/4 x 1/16 inch

2шт.

4

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

2шт.

5

432-3236

COTTER PIN,1/2" x 2 1/4"

Pin, Split (Cotter), 1/2" x 2 1/4"

2шт.

6

120666A3

TUBE ASSY.

ARM - row marker, includes decal

2шт.

7

1254154C2

WARNING DECAL

DECAL - Warning, Keep away. Markers actuate automatically, not shown, see page 9F-115, item 8

1шт.

8

121036A2

ARM ASSY.

ARM - marker, includes decal

2шт.

9

1254154C2

WARNING DECAL

DECAL - Warning, Keep away. Markers actuate automatically, not shown, see page 9F-115, item 8

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

11

439-11044

HEADED PIN,5/8" x 2 3/4", G2

PIN - headed, 5/8 x 2-3/4 inch, grade 2

2шт.

12

1978738C1

HAIR PIN COTTER

3/16"

2шт.

13

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, marker, inner, parts list page 8-95

2шт.

14

120620A1

PIN

- cylinder pivot

2шт.

15

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

6шт.

16

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

17

1345980C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, marker, outer, parts list page 8-93

2шт.

18

1268052C2

TUBE,1550 mm Length

ARM - adjusting, marker, 1550 mm (61 inch) long, 12 row narrow

2шт.

18

187392A1

TUBE,50.8 mm OD, 2032 mm Length

ARM - adjusting, marker, 2032 mm (80 inch) long, 12 row wide

2шт.

19

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

20

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

22

120606A2

PLATE ASSY.

PLATE - adjusting, with guard

2шт.

23

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

2шт.

120608A1

DISC

ASSEMBLY - 14 inch, marker

2шт.

24

487298R1

DISC

- 14 inch, marker

1шт.

25

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING - ball

1шт.

26

468009R1

RETAINER

HOUSING - bearing, inner

1шт.

27

487081R1

COVER

HOUSING - bearing, outer

1шт.

28

45-512

RIVET,But Hd, 5/16" x 3/4"

- button head, 5/16 x 3/4 inch

6шт.

29

1268127C1

PIN,31.7mm OD x 325mm L

- pivot, 1-1/4 x 12-13/16 inch

2шт.

30

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 1/8 inch

2шт.

31

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

32

432-2430

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

2шт.

33

813175C2

LOCK PIN,9.5mm OD

PIN - special

2шт.

34

1268067C1

BAR

- washer

8шт.

35

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

8шт.

36

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

8шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.
