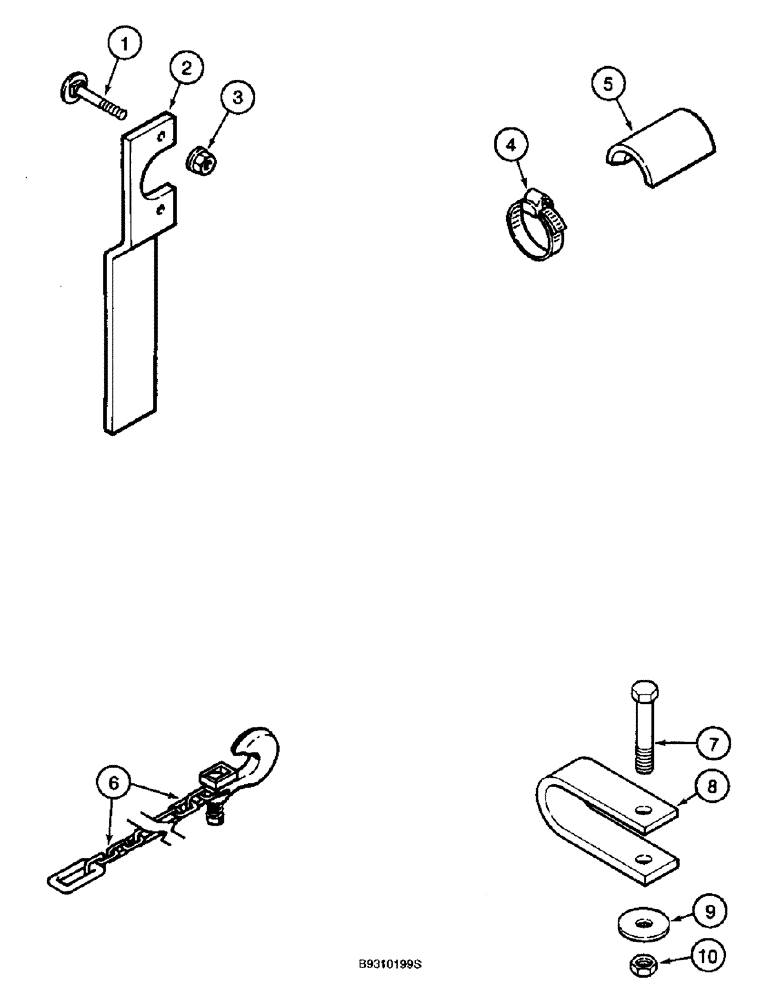

Запчасти Case IH 955 (9D-34) - ROCK GUARD BAR, CYLINDER STOP & TRANSPORT CHAIN, ALL RIGID, VERTICAL FOLD, FRONT FOLD AND PARALLEL (09) - CHASSIS/ATTACHMENTS

1

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - carriage, 3/8 NC x 2-1/2 inch, rock guard bar

4шт.

2

1250733C1

BAR

- rock guard

2шт.

3

231-5146

FLANGE NUT,3/8"-16

Rock guard bar Flg, USR, 3/8"-16

4шт.

4

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adj, 2-9/16 - 3-1/2 inch dia, cylinder stop

2шт.

5

96358C1

STOP

- cylinder anchor

4шт.

6

100682C3

CHAIN (AG)

CHAIN - hitch, 5/16 link x 59-1/4 inch, transport

1шт.

61913C92

PACKAGE

KIT - clevis, includes hardware, transport chain

1шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Transport chain Hex, 5/8"-11 x 3 1/2", G5

1шт.

8

148558C1

CLEVIS

- chain, transport

1шт.

9

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 11/64 inch, transport chain

1шт.

10

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, transport chain

1шт.
