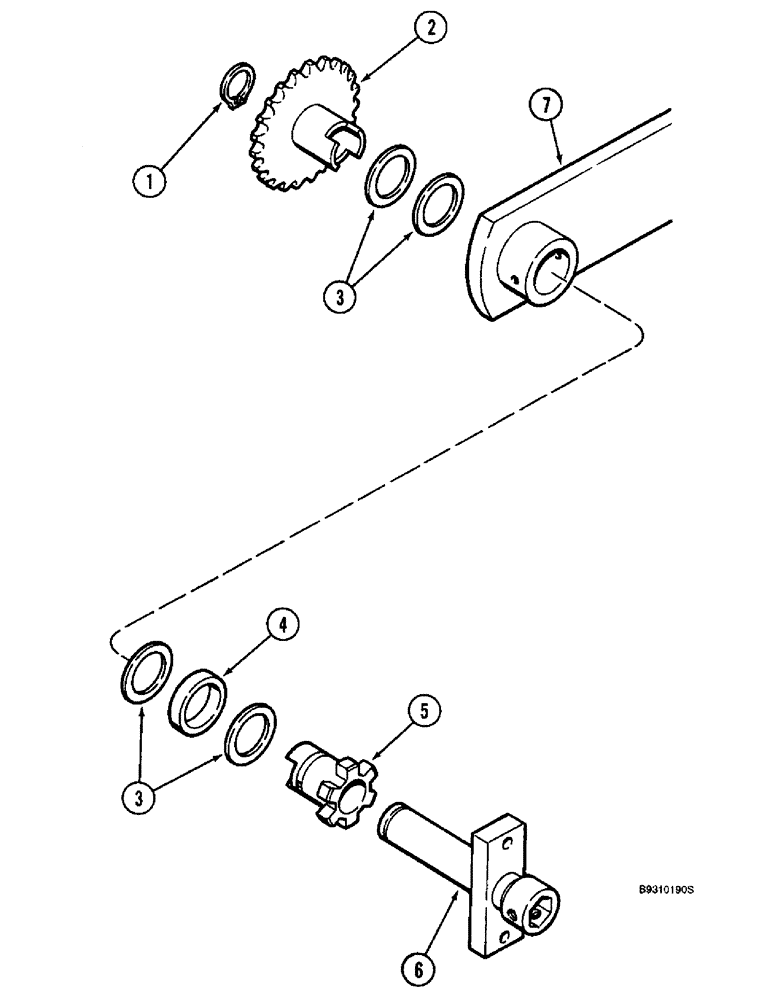

Запчасти Case IH 955 (9D-32) - CLUTCH CONVERSION PACKAGE, RIDGE TILLAGE ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1980976C1

CLUTCH

PACKAGE - clutch conversion, order from Machinery Price List

1шт.

Order (1) for 6 RN with four-wheel drive or with liquid fertilizer attachment. Order (2) for 6 RN with four-wheel drive and liquid fertilizer attachment. Order (1) for 6RW with seed drive. Order (1) for 8 RN with fertilizer attachment.

1шт.

1

100-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

2

1976594C1

SPROCKET ASSY.

SPROCKET - clutch, 23 teeth

1шт.

3

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch

4шт.

4

1980561C1

SPACER

- clutch

1шт.

5

1976596C1

HUB

- ratchet

1шт.

6

1980809C1

SLEEVE

- clutch

1шт.

7

91247C2

RAIL

- wheel, straight, outer (See pages 9A-61 and 9A-63)

1шт.
