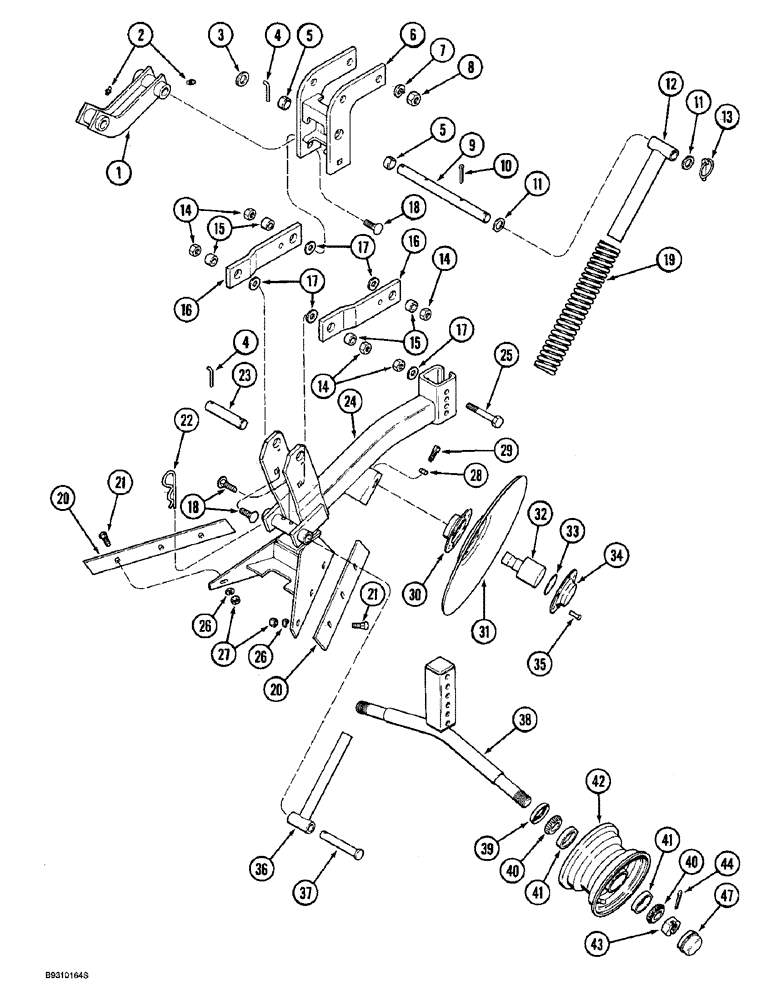

Запчасти Case IH 955 (9D-30) - RIDGE TILLAGE ATTACHMENT, ALL RIGID AND VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

1973153C2

LINKAGE

- upper

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

3

495-81037

WASHER,25/32" x 1 1/4" x .060"

- flat, 25/32 x 1-1/4 x 3/64 inch

6шт.

4

1960621C1

PIN,6.35mm OD

- L-lock

1шт.

5

1344763C1

BUSHING

- 1 x 3/4 x 1/2 inch, support

2шт.

6

1973150C2

BRACKET

- linkage

1шт.

7

492-21062

LOCK WASHER,5/8"

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

1973172C3

PIN

- pivot, long

1шт.

10

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

11

495-81037

WASHER,25/32" x 1 1/4" x .060"

- flat, 25/32 x 1-1/4 x 3/64 inch

2шт.

12

1976215C2

PIPE

- spring guide, outer

2шт.

13

A30338

PIN

- lock

2шт.

14

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

5шт.

15

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

- 13.5 x 22.2 x 13.5 mm

4шт.

16

97830C1

BAR

- lower linkage

2шт.

17

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

5шт.

18

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

19

1976211C1

SPRING

- down pressure

1шт.

20

1973186C1

BAR

- sweep

2шт.

21

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

6шт.

22

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair, 3-13/16" lg Int, 7/16" x .177"

2шт.

23

1973171C3

PIN

- pivot, short

1шт.

24

97878C2

BEAM ASSY.

BACKBONE - ridge tillage attachment

1шт.

25

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

26

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

27

425-106

NUT,3/8"-16, Cl 5

6шт.

28

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

29

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, square head, 3/8 NC x 1 inch, cup point, square head

2шт.

97857C1

DISC

ASSEMBLY - 14 inch, ridge tillage

2шт.

30

468009R1

RETAINER

HOUSING - bearing, inner

1шт.

31

NSS

NOT SOLD SEPARAT

DISK - ridge tillage, 14 inch (Order 97857C1)

1шт.

32

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING - ball, includes spindle

1шт.

33

1344710C1

GASKET

- bearing flange

1шт.

34

487081R1

COVER

HOUSING - bearing, outer

1шт.

35

147-307

RIVET

- button head, 5/16 x 3/4 inch

6шт.

36

1976212C2

PIPE

- spring guide, inner

2шт.

37

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

2шт.

38

97833C3

HOUSING

- lower shell assembly, narrow row

1шт.

38

1547690C1

HOUSING

- lower shell assembly, wide row

1шт.

39

97859C1

SEAL

- dust

2шт.

1334189C1

WHEEL,152.4mm OD x 88.9mm W

ASSEMBLY - ridge tillage

2шт.

40

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - tapered roller bearing

2шт.

41

572564R1

BEARING CUP

CUP - tapered roller bearing

2шт.

42

NSS

NOT SOLD SEPARAT

WHEEL - ridge tillage (Use 13 x 5.00-6 4 ply tire and 4.10/3.50-6 tube) (Order 1334189C1)

1шт.

43

70121D

NUT

- hex, jam, 1 inch NS, jam

2шт.

44

32-1032

COTTER PIN,5/32" x 2"

Pin, Split (Cotter), 5/32" x 2"

2шт.

47

1969160C1

CAP

- hub

2шт.
