(9D-28) - MOUNTING BRACKETS, RIDGE TILLAGE ATTACHMENT, NARROW ROW PLANTERS, RIGID

Запчасти Case IH 955 (9D-28) - MOUNTING BRACKETS, RIDGE TILLAGE ATTACHMENT, NARROW ROW PLANTERS, RIGID (09) - CHASSIS/ATTACHMENTS

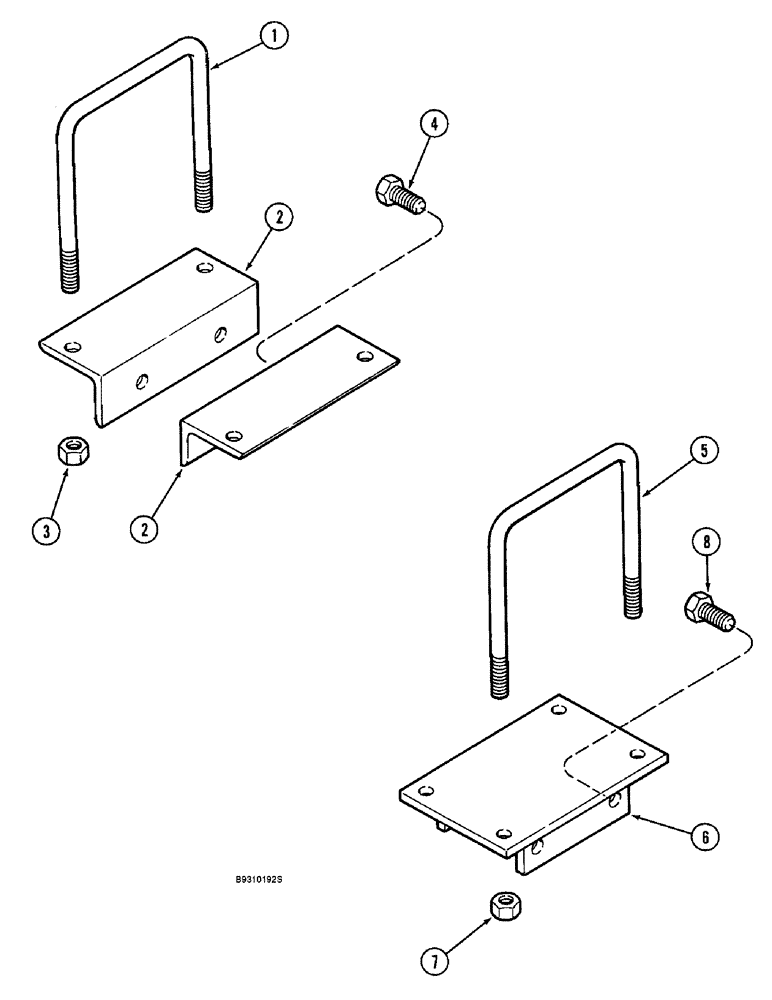

Схема запчастей Case IH 955 - (9D-28) - MOUNTING BRACKETS, RIDGE TILLAGE ATTACHMENT, NARROW ROW PLANTERS, RIGID (09) - CHASSIS/ATTACHMENTS
8
1
2
6
2
3
7
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

2

1973148C1

ANGLE

- toolbar bracket

2шт.

3

425-1010

NUT,5/8"-11, G5

4шт.

4

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.
