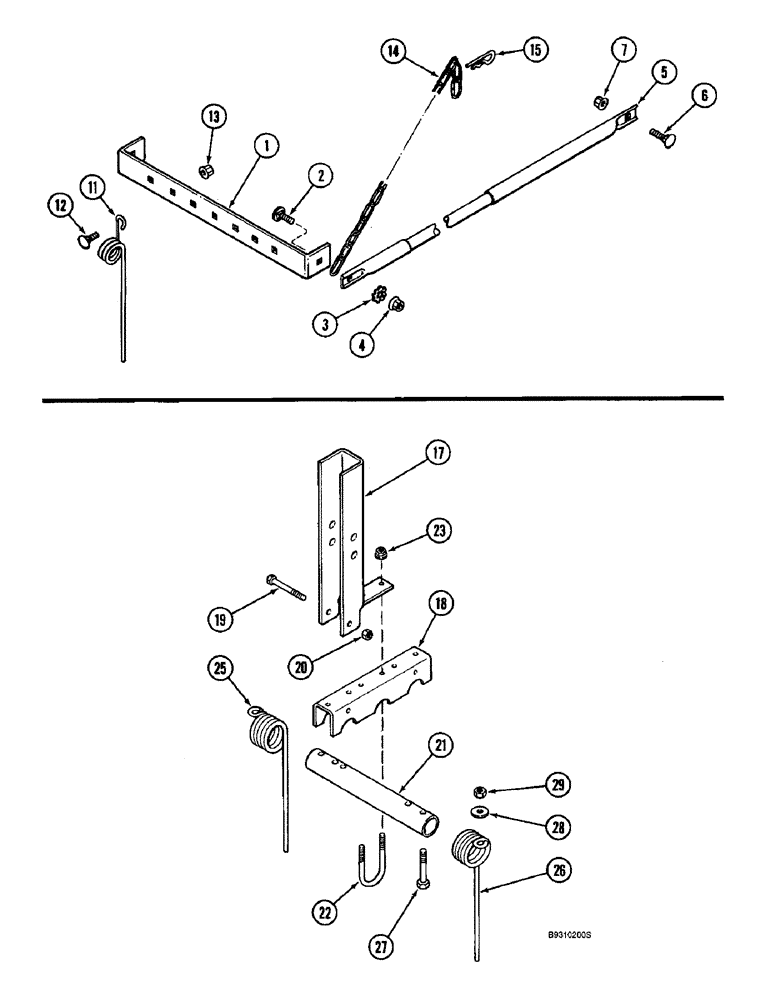

Запчасти Case IH 955 (9D-24[1]) - TINE TOOTH ATTACHMENT, ALL RIGID, VERTICAL FOLD, FRONT FOLD AND PARALLEL FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

17

141381C2

SUPPORT

- tine tooth

1шт.

18

141382C1

CHANNEL

BRACKET - support tube

1шт.

19

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

20

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

21

1279536C1

SUPPORT TUBE,33.4 mm OD, 248 mm Length

TUBE - tine support

3шт.

22

141384C1

U-BOLT,5/16" - 18 x 77mm L

- 5/16 inch NC

3шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

25

1279534C1

SPRING

- tooth tine, left-hand, left-hand

3шт.

26

1279535C1

SPRING

- tooth tine, right-hand, right-hand

2шт.

27

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

5шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

5шт.

29

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

5шт.
