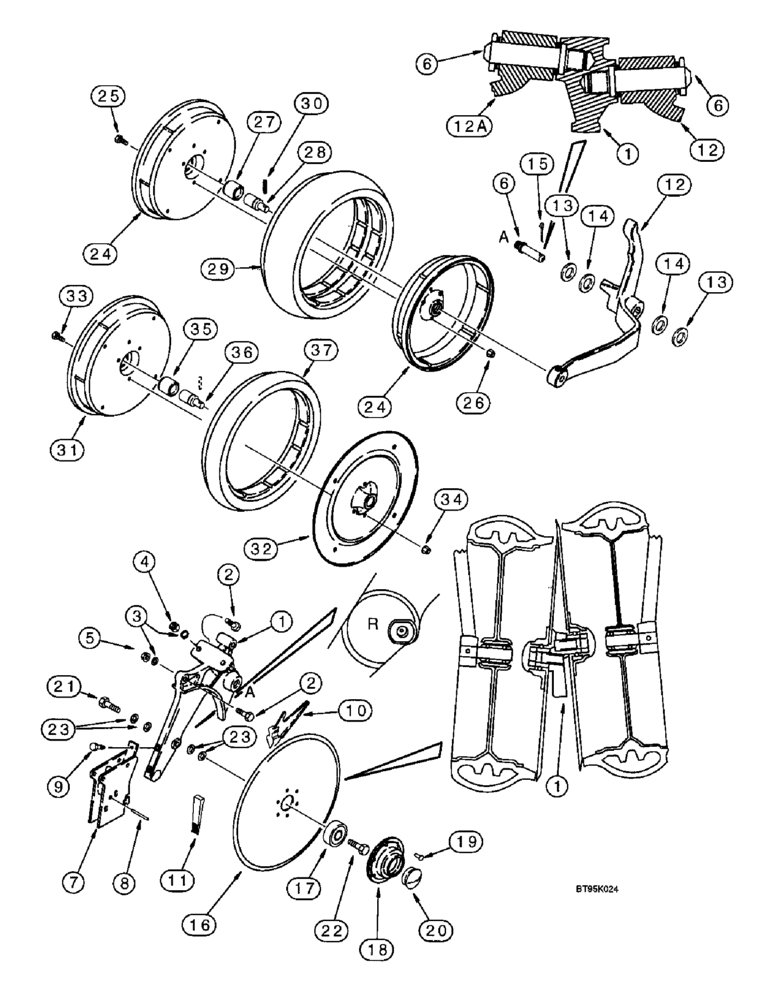

Запчасти Case IH 955 (9D-08) - DISC OPENER & GAUGE WHEEL, W/RIGHT-HAND LEADING DISC (ON LEFT HAND SIDE OF PLANTER) (09) - CHASSIS/ATTACHMENTS

1

142865A1

SUPPORT

- disc opener and gauge wheel (Identified by letter “R” on disc mounting boss

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

6

175598A1

PIN,25.4mm OD x 120mm L

- gauge wheel

2шт.

7

1277777C1

SHOE (ASSY)

SHOE - disc opener

1шт.

8

38-11622

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

2шт.

9

1263977C1

BOLT

- hex flange, 3/8 NC x 3/4 inch

2шт.

10

91265C1

POINT

SHOVEL - firming

1шт.

11

140817C1

DEFLECTOR

- seed

1шт.

12

142867A1

ARM

- gauge wheel, right-hand

1шт.

12a

142866A1

ARM

- gauge wheel, left-hand

1шт.

13

495-81081

WASHER,1 3/32" x 1 1/2" x .060"

- flat, 1-3/32 x 1-1/2 x 1/16 inch

4шт.

14

495-81082

WASHER,1 3/32" x 1 1/2" x .120"

- flat, 1-3/32 x 1-1/2 x 1/8 inch

6шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

90851C92

DISC

ASSEMBLY - 14 In Trailing

1шт.

90850C92

DISC

OPENER ASSY, 14" STD LEADING

1шт.

16

1337971C1

DISC

- furrow opener

1шт.

17

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

- ball

1шт.

17

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

18

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

- bearing

1шт.

19

447-49

RIVET,FH, 1/4" x 9/16"

- flat head, 1/4 x 9/16 inch

6шт.

20

492709R2

CAP

- bearing

2шт.

21

113-2654

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8, Full Thd

- hex, left-hand thread, 5/8 NC x 1-1/2 inch, grade 8

1шт.

22

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

RH thread Hex, 5/8"-11 x 1 3/4", G8, Full Thd

1шт.

23

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

- retaining, special, hardened

1шт.

225349A1

WHEEL ASSY

WHEEL ASSEMBLY - gauge, 5 inch tire, used with 30, 36, 38 and 40 inch row spacing

2шт.

24

128616C2

WHEEL

DISC - wheel

2шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

7шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

27

133966C1

BUSHING,29.94mm ID x 39.95mm OD x 39mm L

- bearing sleeve

1шт.

28

128558C91

BALL BEARING,30mm OD x 75mm L

- gauge wheel

1шт.

29

128633C1

TYRE/TIRE

TIRE - disc opener gauge wheel, 5 inch

1шт.

30

38-31632

PIN,1/4" x 2", Coiled

1шт.

228886A1

WHEEL ASSY.

WHEEL ASSEMBLY - gauge, 2-1/2 inch tire, used with 15 inch row spacing

2шт.

31

128616C2

WHEEL

DISC - wheel, wide

1шт.

32

141678A1

RIM

DISC - wheel, narrow

1шт.

33

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

7шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

35

133966C1

BUSHING,29.94mm ID x 39.95mm OD x 39mm L

- bearing sleeve

1шт.

36

128558C91

BALL BEARING,30mm OD x 75mm L

- gauge wheel

1шт.

37

194063A1

TYRE/TIRE

TIRE - disc opener gauge wheel, 2-1/2 inch

1шт.
