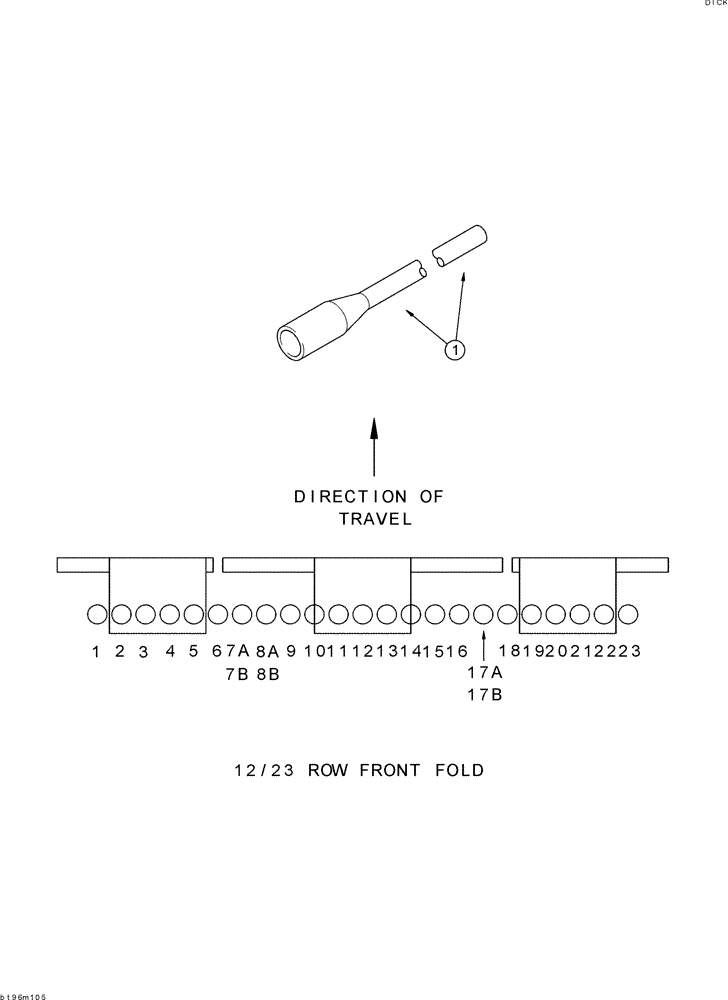

Запчасти Case IH 955 (9C-82) - SEED DELIVERY TUBE, AFS PLANTER, 12/23 SRC (09) - CHASSIS/ATTACHMENTS

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 1

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 2

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 3

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 4

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 5

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 6

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 7A, module to manifold breakaway coupler

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

249544A1

TUBE,1170 mm Length

- seed delivery, 46 inch, No. 7B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 8A, module to manifold breakaway coupler

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

249545A1

TUBE,1220 mm Length

- seed delivery, 48 inch, No. 8B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 9

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 10

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 11

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337523C1

TUBE,17.45 - 28.5 mm OD, 1430 mm Length

- seed delivery, 56 inch, No. 12

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 13

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 14

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 15

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 16

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 17A, module to manifold breakaway coupler

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

249544A1

TUBE,1170 mm Length

- seed delivery, 46 inch, No. 17B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 18

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337523C1

TUBE,17.45 - 28.5 mm OD, 1430 mm Length

- seed delivery, 56 inch, No. 19

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

258751A1

TUBE,17.45 - 28.5 mm OD, 1220 mm Length

- seed delivery, 48 inch, No. 20

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

357276A1

TUBE - seed delivery, 44 inch, No. 21

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

258751A1

TUBE,17.45 - 28.5 mm OD, 1220 mm Length

- seed delivery, 48 inch, No. 22

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 23

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.
