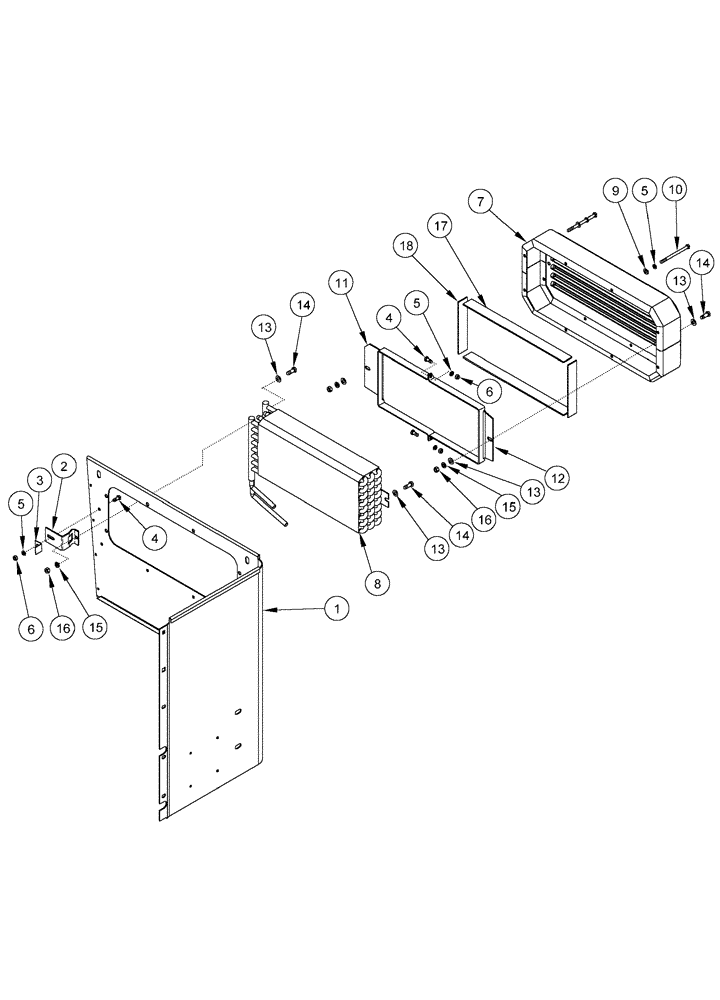

Запчасти Case IH 955 (9C-80) - COOLER SHROUD FOR SEED MODULE HOUSING, AFS PLANTER, 12 ROW NARROW & 16 ROW NARROW & 12/23 SRC (09) - CHASSIS/ATTACHMENTS

1

1995901C2

SHEET

PANEL - module, left-hand

1шт.

2

314444A1

BRACKET

- oil cooler

2шт.

3

1263875C1

SUPPORT

BRACKET - bypass tube

2шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

7

314405A1

VENT

LOUVER - oil cooler access

1шт.

8

315923A2

COOLER, OIL

COOLER - oil

1шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

8шт.

10

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

8шт.

11

321729A1

SUPPORT

- cooler, left

1шт.

12

321732A1

SUPPORT

- cooler, right

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

15

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

321733A1

SEAL

- horizontal, cooler

2шт.

18

321734A1

SEAL

- vertical, cooler

2шт.
