Запчасти Case IH 955 (9C-78) - HOPPER BOTTOM - CORN AND BEET, SEED GROWERS SPECIAL, ALL RIGID, VERTICAL FOLD & FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

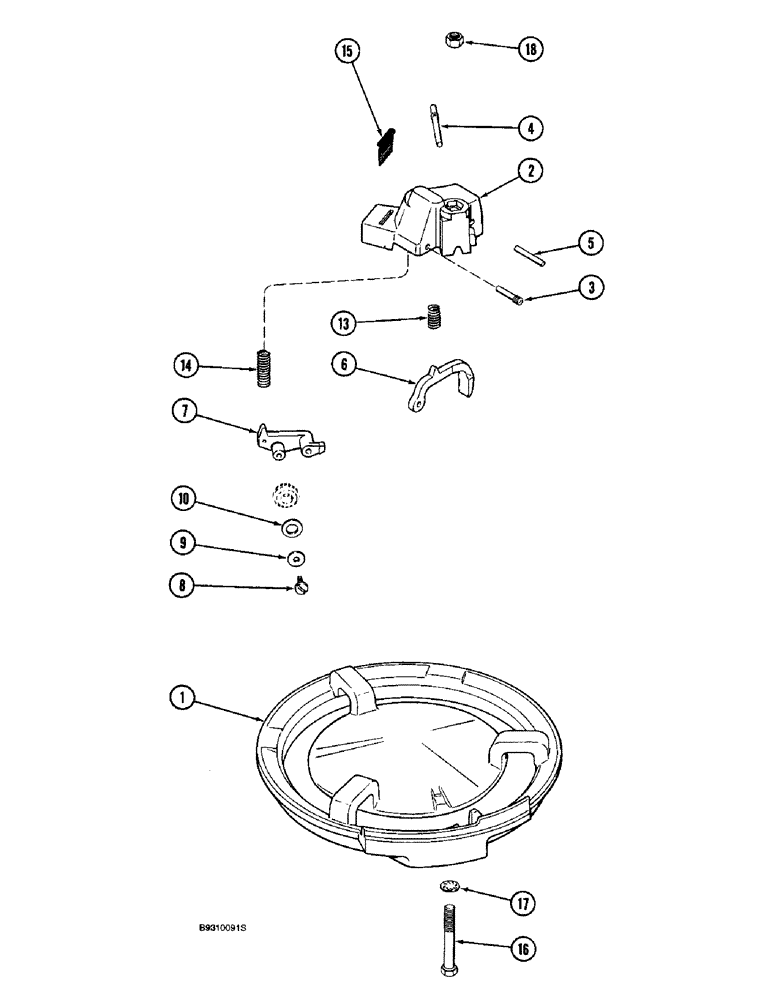

Схема запчастей Case IH 955 - (9C-78) - HOPPER BOTTOM - CORN AND BEET, SEED GROWERS SPECIAL, ALL RIGID, VERTICAL FOLD & FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS
1
9
7
2
14
18
16
13
3
17
10
8
5
6
15
4

Артикул

Название

Примечание

Количество

1

1279409C2

BOTTOM

- hopper

1шт.

2

484871R91

SERVICE KIT

COVER ASSEMBLY - double pawl

1шт.

3

484883R1

PIN

- pawl pivot, 3/16 x 1 inch

1шт.

4

484882R1

PIN

- arm pivot, 3/16 x 1-1/2 inch

1шт.

5

38-31222

PIN,3/16" x 1 3/8", Coiled

- roll, 3/16 x 1-5/16 inch, pawl stop

1шт.

6

484875R1

PAWL

- cutoff

2шт.

7

484885R21

ARM

ASSEMBLY - roller knocker

1шт.

8

488808R1

SCREW

- pan head slotted, No. 10 NC x 1/2 inch

1шт.

9

495-21019

WASHER,#8

1шт.

10

376308R1

SPRING WASHER

- special, 11/32 inch diameter

1шт.

13

484881R1

SPRING

- cutoff pawl

2шт.

14

542320R1

SPRING

- knocker pawl

1шт.

15

484879R1

DOOR

GATE - double pawl cover

1шт.

16

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

17

493-81008

LOCK WASHER,Int Tooth, 5/16"

1шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

Выбрано товаров: 16
