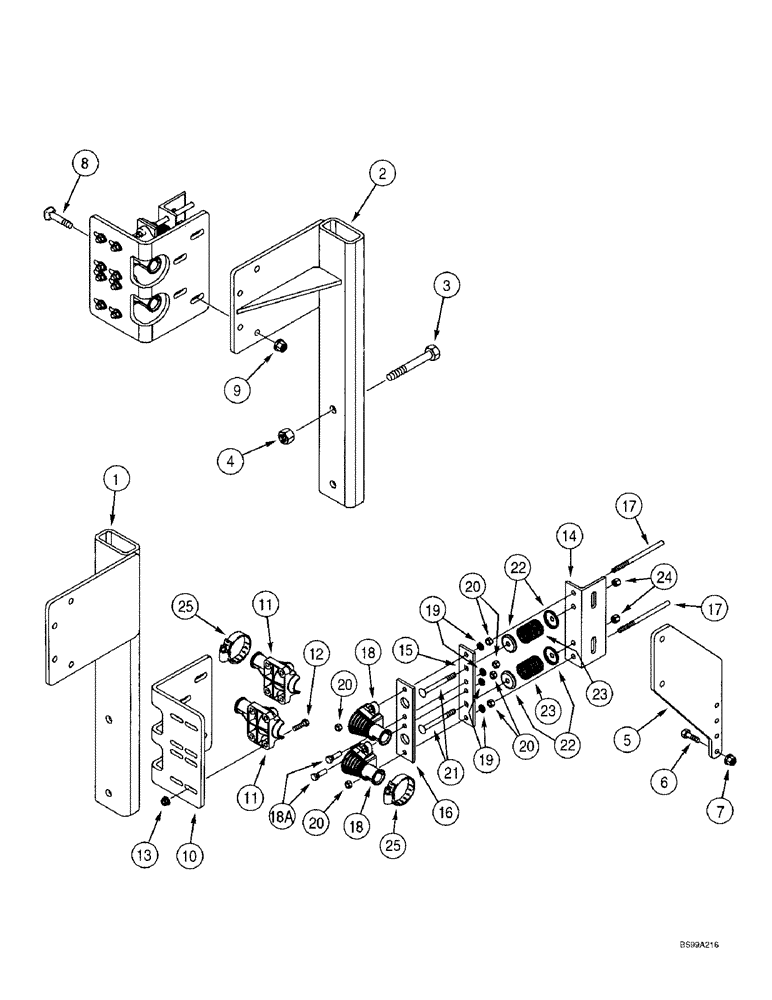

Запчасти Case IH 955 (9C-74) - SEED DELIVERY TUBE BREAKAWAY COUPLERS, 12/23 SOLID ROW CROP - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

311531A1

COUPLING

SUPPORT - center frame coupler, right-hand

1шт.

2

311530A1

COUPLING

SUPPORT - center frame coupler, left-hand

1шт.

3

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

5

302749A1

PLATE

- coupler mounting, wing frame

2шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

7

231-5346

FLANGE NUT,Flg, 3/8"-16

NUT - hex flange, self-locking, 3/8 inch NC

8шт.

8

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

8шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

8шт.

10

311526A2

BRACKET

- manifold mounting, center frame

2шт.

11

235691A2

COUPLING

MANIFOLD - tube, split, center frame

4шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

16шт.

13

231-5346

FLANGE NUT,Flg, 3/8"-16

NUT - hex flange, self-locking, 3/8 inch NC

16шт.

14

311414A1

COUPLING

BRACKET - manifold mounting, wing frame

2шт.

Ref #14, 214-1416, new clamp is 214-3128.

1шт.

15

308278A1

COUPLING

PLATE - coupler adapter

2шт.

16

308272A1

COUPLING

PLATE - coupler mounting

2шт.

17

313169A1

COUPLING

GUIDE - coupler spring

4шт.

18

235692A2

COUPLING

MANIFOLD - tube, split, wing frame

4шт.

18a

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

19

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

20

425-106

NUT,3/8"-16, Cl 5

12шт.

21

433-664

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

BOLT - carriage, 3/8 NC x 4 inch

4шт.

22

313851A1

CUP WASHER

RETAINER - spring

8шт.

23

311415A1

SPRING

- coupler plate

4шт.

24

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

4шт.

25

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - adj, 1 - 1-7/8 inch dia

6шт.

Bolt for 214-3128 is 434-820. Used on 12/23, 12RFF, 16RFF.

1шт.
