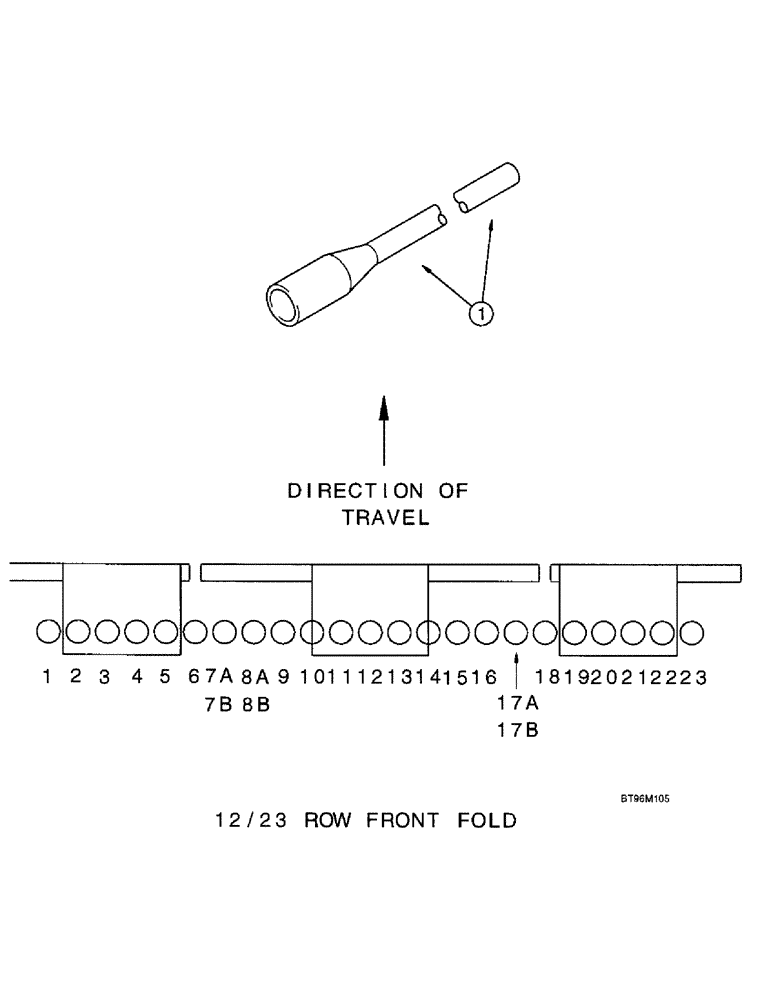

Запчасти Case IH 955 (9C-72) - SEED DELIVERY TUBE, 12/23 SOLID ROW CROP - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 1, see note (B)

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 2, see note (A)

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 3, see note (A)

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 4, see note (A)

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 5, see note (A)

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 6, see note (B)

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 7A, see note (A) module to manifold breakaway coupler

1шт.

1

249544A1

TUBE,1170 mm Length

- seed delivery, 46 inch, No. 7B, see note (A) breakaway coupler to row unit

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 8A, see note (A) module to manifold breakaway coupler

1шт.

1

249545A1

TUBE,1220 mm Length

- seed delivery, 48 inch, No. 8B, see note (A) breakaway coupler to row unit

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 9, see note (B)

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 10, see note (B)

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 11, see note (B)

1шт.

1

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 12, see note (B)

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 13, see note (B)

1шт.

1

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 14, see note (B)

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 15, see note (B)

1шт.

1

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 16, see note (B)

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 17A, see note (A) module to manifold breakaway coupler

1шт.

1

249544A1

TUBE,1170 mm Length

- seed delivery, 46 inch, No. 17B, see note (A) breakaway coupler to row unit

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 18, see note (B)

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 19, see note (B)

1шт.

1

258751A1

TUBE,17.45 - 28.5 mm OD, 1220 mm Length

- seed delivery, 48 inch, No. 20, see note (A)

1шт.

1

1254367C2

TUBE,17.45 - 28.5 mm OD, 1190 mm Length

- seed delivery, 47 inch, No. 21, see note (A)

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 22, see note (A)

1шт.

1

1337523C1

TUBE,17.45 - 28.5 mm OD, 1430 mm Length

- seed delivery, 56 inch, No. 23, see note (A)

1шт.
