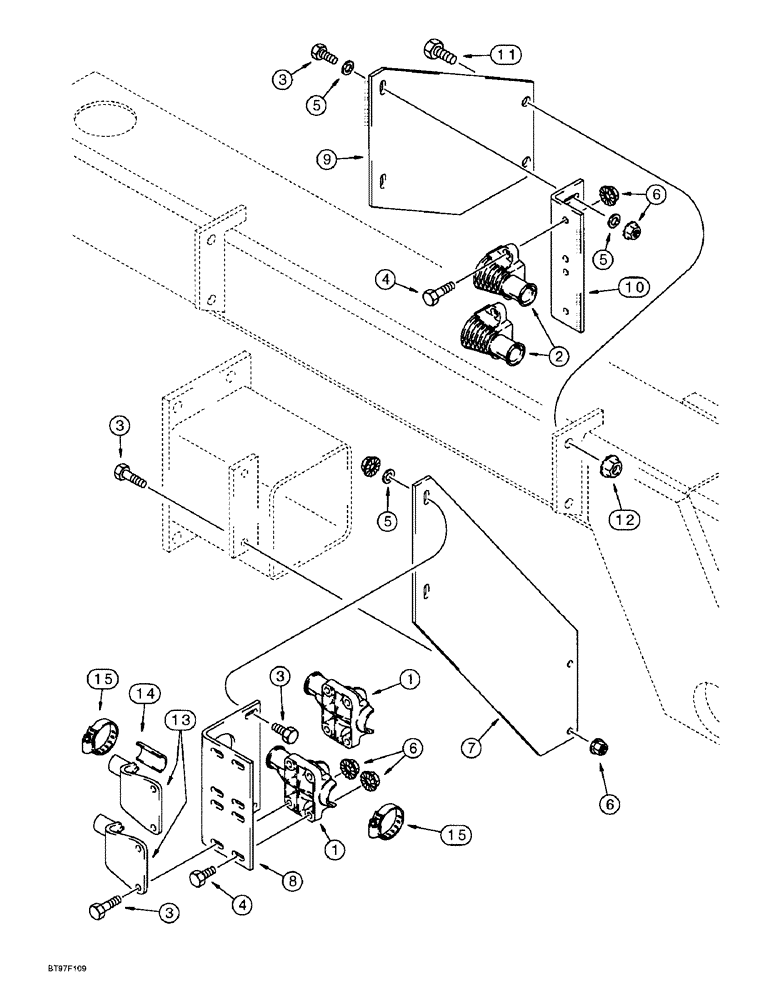

Запчасти Case IH 955 (9C-67A) - SEED DELIVERY TUBE BREAKAWAY COUPLERS, 12 ROW WIDE - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

235691A2

COUPLING

MANIFOLD - tube, split, center frame

4шт.

2

235692A2

COUPLING

MANIFOLD - tube, split, wing frame

4шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

20шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

16шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used as bracket spacer 3/8", SAE

1шт.

6

231-5146

FLANGE NUT,3/8"-16

36шт.

7

253467A2

PLATE

BRACKET - manifold mounting, at center frame extension

2шт.

8

253468A1

ANGLE

- manifold mounting, at center frame extension

2шт.

9

253466A2

PLATE

- manifold support, hinge frame

2шт.

10

235694A2

BRACKET

- mounting, breakaway coupler, at wing frame hinge

2шт.

11

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

12

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

4шт.

13

255851A1

BRACKET

SUPPORT - seed tube manifold, center frame

4шт.

14

255850A1

BUSHING

- seed tube support

4шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, #16, 0.81/1.50 Type F Worm

12шт.
