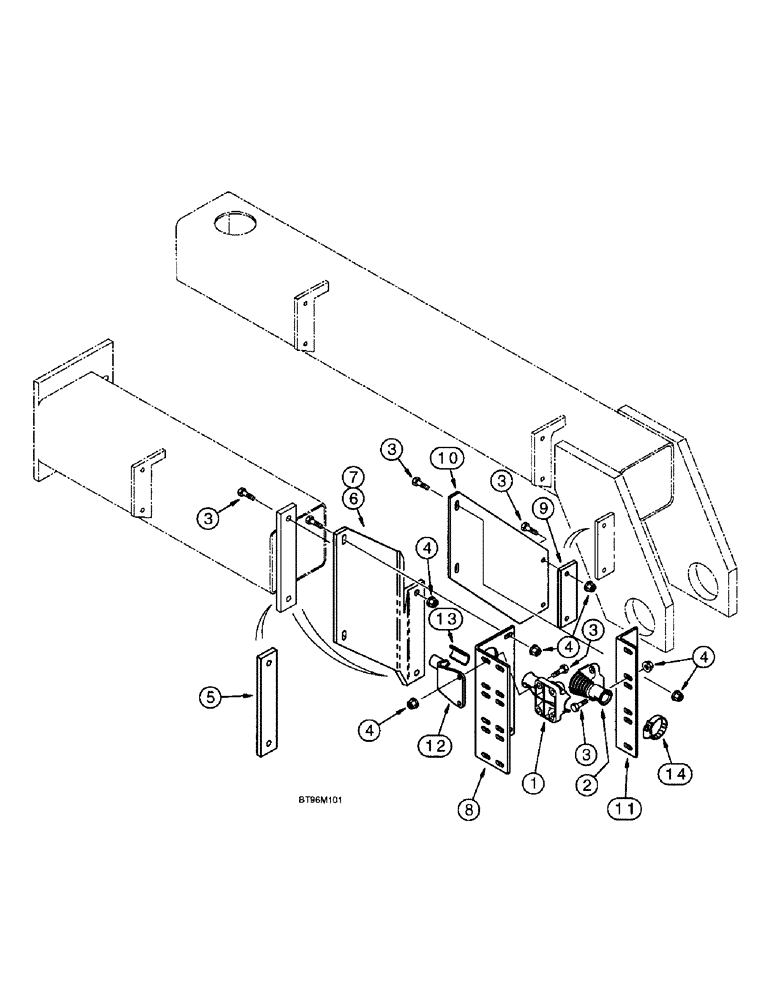

Запчасти Case IH 955 (9C-66) - SEED DELIVERY TUBE BREAKAWAY COUPLERS, 12 ROW NARROW & 16 ROW NARROW - FOLD FRONT (09) - CHASSIS/ATTACHMENTS

1

235691A2

COUPLING

MANIFOLD - tube, split, center frame

6шт.

2

235692A2

COUPLING

MANIFOLD - tube, split, wing frame

6шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

24шт.

4

231-5146

FLANGE NUT,3/8"-16

24шт.

5

239176A1

PLATE

BAR - mounting, manifold bracket, welded to center frame extension, if used

2шт.

6

239173A1

BRACKET

- manifold mounting, right-hand, at center frame extension

1шт.

7

239172A1

BRACKET

- manifold mounting, left-hand, at center frame extension (not shown)

1шт.

8

239174A2

ANGLE

- manifold mounting, at center frame extension

2шт.

9

235696A1

STRAP

BAR - mounting, manifold support plate, welded to wing frame hinge, if used

2шт.

10

239175A2

PLATE

- manifold support, wing frame

2шт.

11

239177A1

ANGLE

- manifold mounting, at wing frame hinge

2шт.

12

255851A1

BRACKET

SUPPORT - seed tube manifold, center frame

6шт.

13

255850A1

BUSHING

- seed tube support

6шт.

14

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - adj, 13/16 - 1-1/2 inch dia ( replaced 214-1416 )

18шт.

Bolt for 214-3128 is 434-820. Used on 12/23, 12RFF, 16RFF.

1шт.
