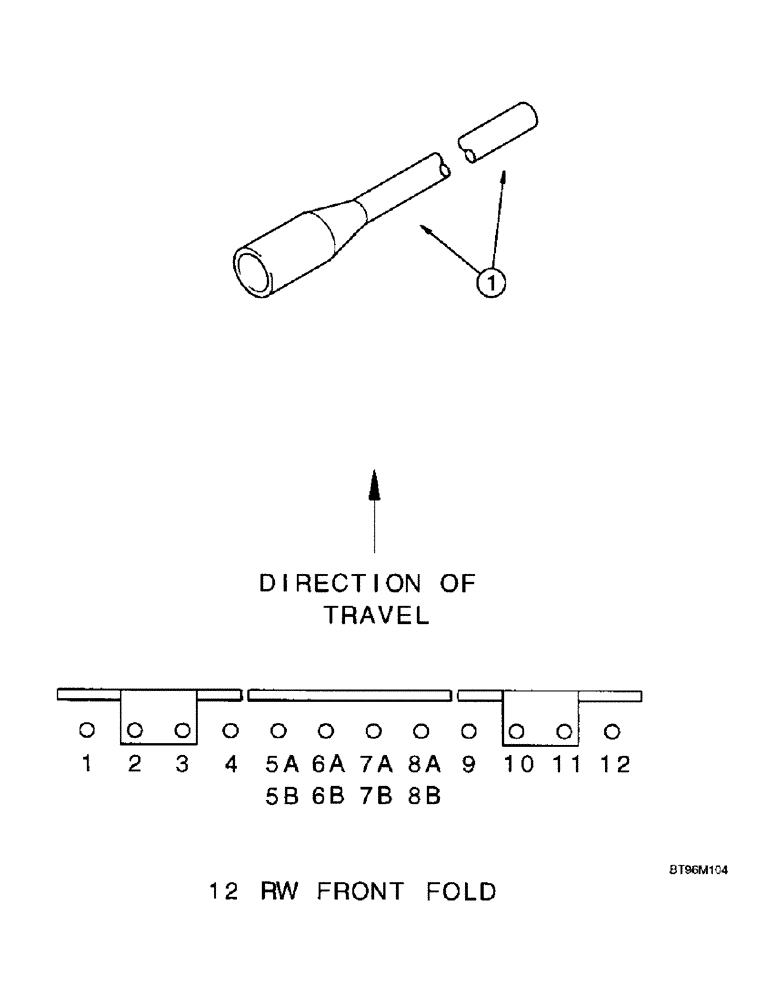

Запчасти Case IH 955 (9C-64) - SEED DELIVERY TUBE, 12 ROW WIDE- FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 1

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 2

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 3

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 4

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 5A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

249545A1

TUBE,1220 mm Length

- seed delivery, 48 inch, No. 5B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 6A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258656A1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84-1/4 inch, No. 6B, breakaway coupler to row unit

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 7A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258656A1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84-1/4 inch, No. 7B, breakaway coupler to row unit

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337529C1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84 inch, No. 8A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

249545A1

TUBE,1220 mm Length

- seed delivery, 48 inch, No. 8B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 9

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1254367C2

TUBE,17.45 - 28.5 mm OD, 1190 mm Length

- seed delivery, 47 inch, No. 10

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 11

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 12

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.
