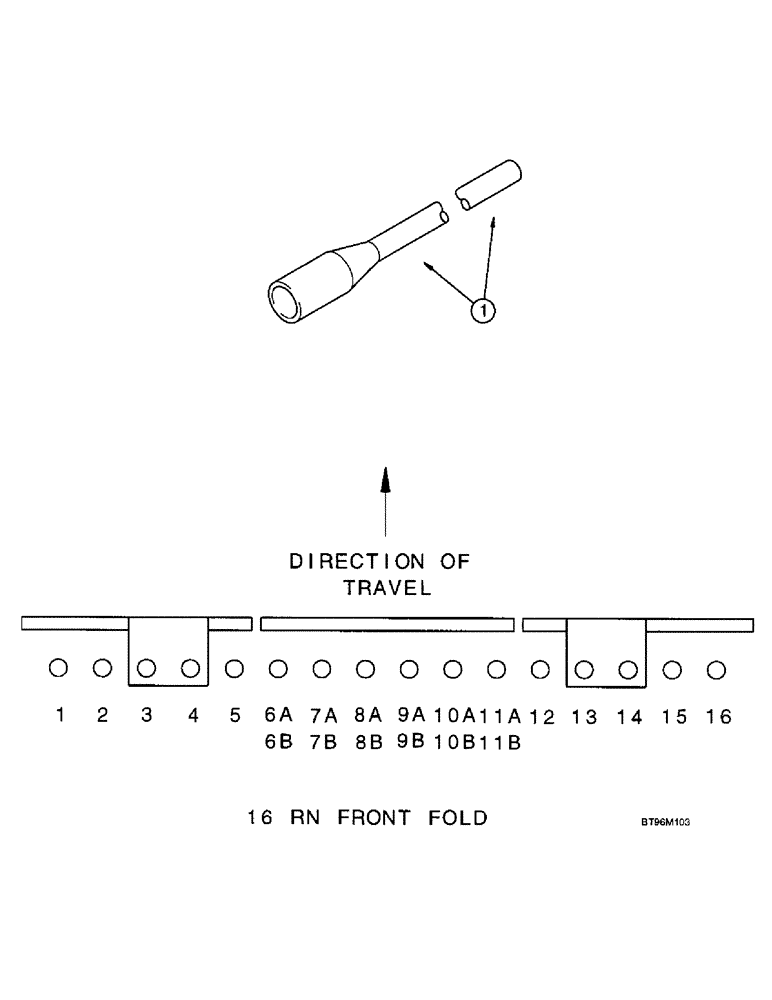

Запчасти Case IH 955 (9C-62) - SEED DELIVERY TUBE, 16 ROW NARROW - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1279792C1

TUBE,17.45 - 28.5 mm OD, 2560 mm Length

- seed delivery, 101 inch, No. 1

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 2

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1254367C2

TUBE,17.45 - 28.5 mm OD, 1190 mm Length

- seed delivery, 47 inch, No. 3

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 4

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 5

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 6A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258832A1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 6B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 7A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258655A1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 7B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 8A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258656A1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84-1/4 inch, No. 8B, breakaway coupler to row unit

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258830A1

TUBE

- seed delivery, 80-3/8 inch, No. 9A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258831A1

TUBE,17.45 - 28.5 mm OD, 2850 mm Length

- seed delivery, 112-1/4 inch, No. 9B, breakaway coupler to row unit

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258830A1

TUBE

- seed delivery, 80-3/8 inch, No. 10A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258655A1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 10B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337529C1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84 inch, No. 11A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258832A1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 11B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 12

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1254367C2

TUBE,17.45 - 28.5 mm OD, 1190 mm Length

- seed delivery, 47 inch, No. 13

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 14

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 15

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 16

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.
