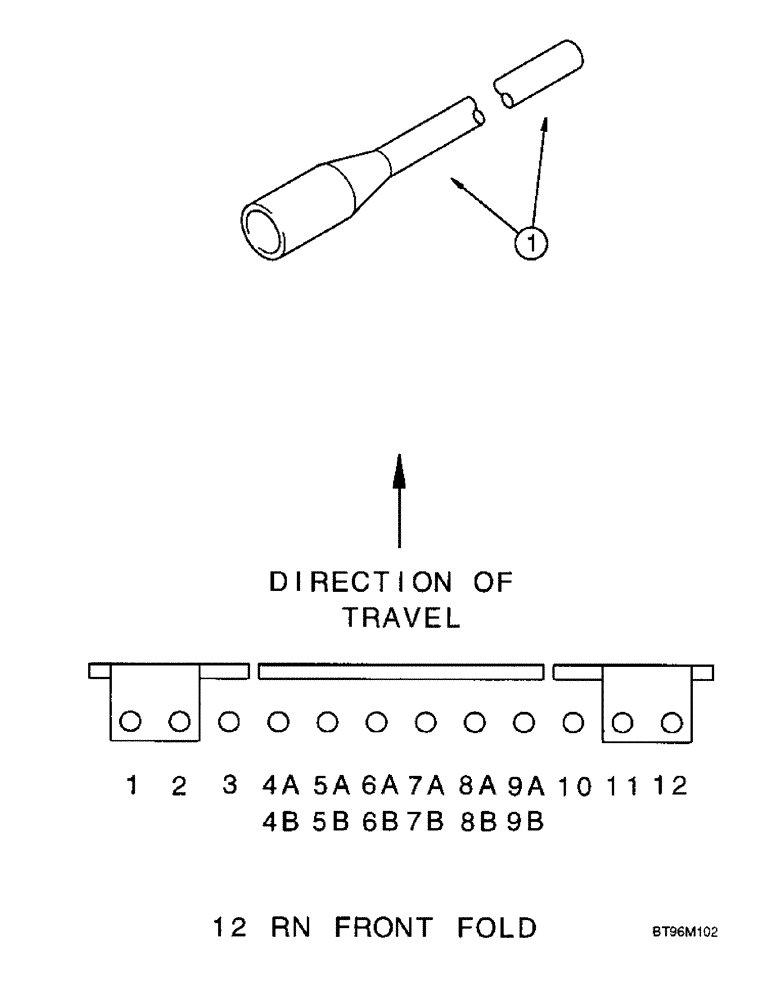

Запчасти Case IH 955 (9C-60) - SEED DELIVERY TUBE, 12 ROW NARROW - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1337518C1

TUBE,17.45 - 28.5 mm OD, 1010 mm Length

- seed delivery, 40 inch, No. 1

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 2

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 3

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 4A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258654A1

TUBE,17.5 - 28.5 mm OD, 1650 mm Length

- seed delivery, 35 inch, No. 4B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 5A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258655A1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 5B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 6A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258656A1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84-1/4 inch, No. 6B, breakaway coupler to row unit

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337529C1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84 inch, No. 7A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258656A1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84-1/4 inch, No. 7B, breakaway coupler to row unit

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337529C1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84 inch, No. 8A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258655A1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 8B, breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337529C1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84 inch, No. 9A, module to manifold breakaway coupler

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

258654A1

TUBE,17.5 - 28.5 mm OD, 1650 mm Length

- seed delivery, 35 inch, No. 9B breakaway coupler to row unit

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 10

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1254367C2

TUBE,17.45 - 28.5 mm OD, 1190 mm Length

- seed delivery, 47 inch, No. 11

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 12

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.
