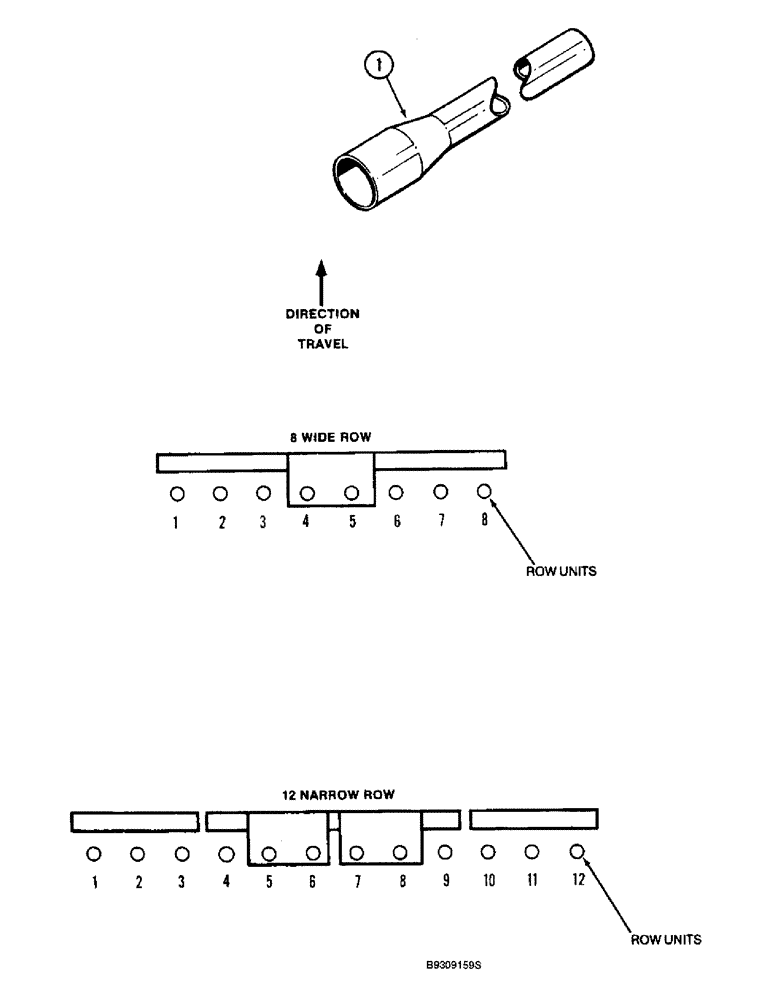

Запчасти Case IH 955 (9C-58[B]) - 12 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

1973256C1

TUBE

- seed delivery, 162 inch, No. 1

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337535C1

TUBE,17.45 - 28.5 mm OD, 3165 mm Length

- seed delivery, 125 inch, No. 2

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 3

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 4

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 5

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 6

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed deiivery, 42 inch, No. 7

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 8

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 9

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 10

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 118 inch, No. 11

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 12

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.
