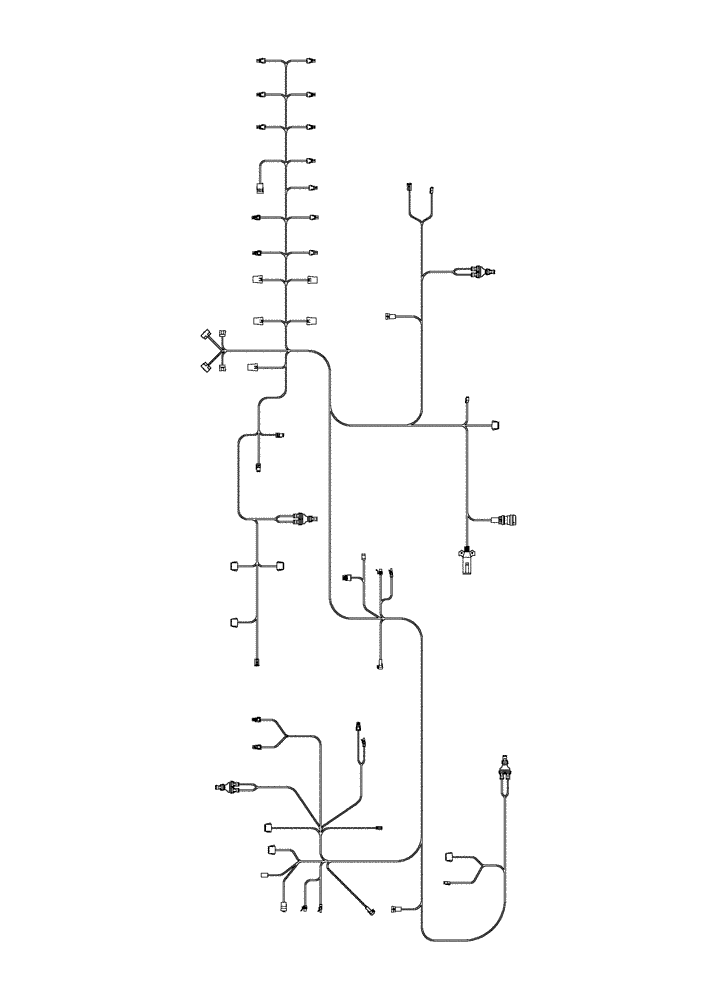

Запчасти Case IH 955 (4-34) - HARNESS, AFS PLANTER, 12 ROW NARROW, 16 ROW NARROW AND 12/23 SRC (04) - ELECTRICAL SYSTEMS

1

323276A1

HARNESS

- main, 12RN and 16RN, and 12/23 SRC

1шт.

2

323081A1

PANEL

- fuse, harness connects to the following (not illustrated) items

1шт.

3

323288A1

HARNESS

- Cyclo MCC, harness connects to the following (not illustrated) items

1шт.

4

323344A1

HARNESS

- Cyclo Gateway, harness connects to the following (not illustrated) items

1шт.

5

293800A2

SENSOR

- Smart seed, harness connects to the following (not illustrated) items

1шт.

6

322963A1

BOARD, PRINTED CIRCU

MODULE - planter fold, harness connects to the following (not illustrated) items

1шт.

7

323597A1

MULTIPOLE CONNECTOR

CONNECTOR - implement, electrical, harness connects to the following (not illustrated) items

1шт.

8

192052A1

REPAIR KIT

KIT - lamp, harness connects to the following (not illustrated) items

1шт.

9

1983416C2

SWITCH

- remote tether, harness connects to the following (not illustrated) items

1шт.

10

284638A2

ELEC CONNECTOR,4 Pin

CONNECTOR - terminator, active, harness connects to the following (not illustrated) items

1шт.

11

91986C91

LIGHT

LAMP ASSEMBLY -, harness connects to the following (not illustrated) items

1шт.

12

330315A1

BOARD, PRINTED CIRCU

MODULE - monitor interface controller, harness connects to the following (not illustrated) items

1шт.

12

405514A1R

REMAN ELECT CONTROL

955 CASE IH TRAILING PLANTER, MODULE - monitor interface controller (10/95), Reman for New PN 330315A1

1шт.

12

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

13

324313A1

SWITCH

- limit, harness connects to the following (not illustrated) items

1шт.

14

324049A1

SENSOR

- speed hall, harness connects to the following (not illustrated) items

1шт.

15

259829A1

COIL

- solenoid, 12 volt, 2 inch, harness connects to the following (not illustrated) items

1шт.

16

301099A1

COIL

- solenoid, 12 volt, harness connects to the following (not illustrated) items

1шт.
