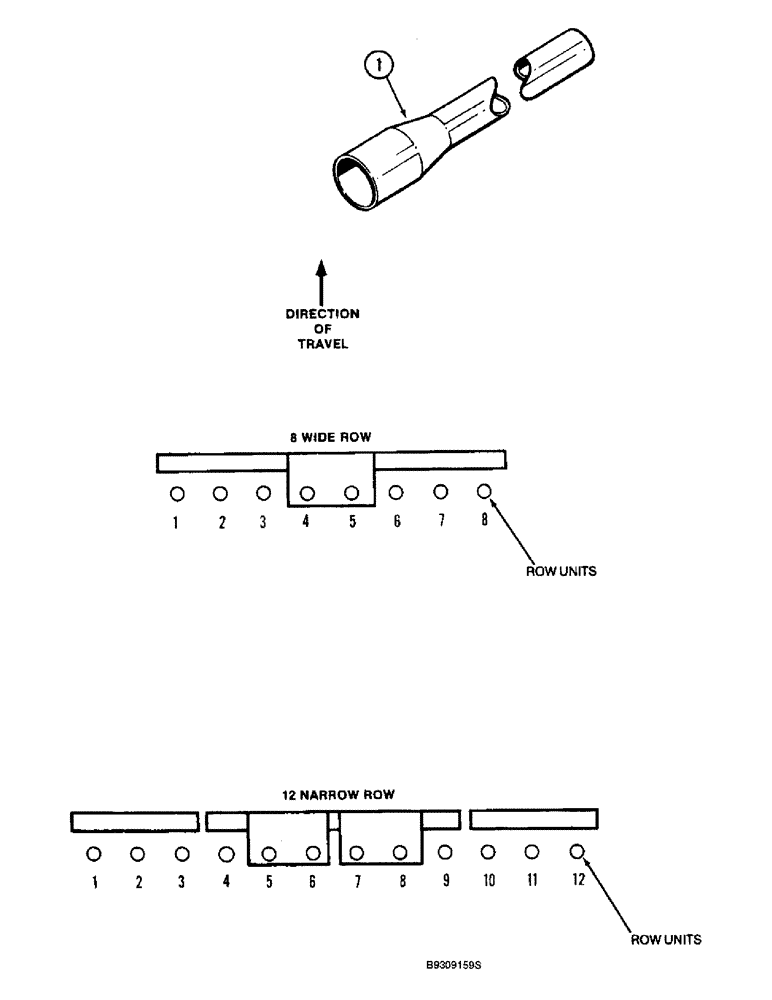

Запчасти Case IH 955 (9C-58[A]) - SEED DELIVERY TUBE, VERTICAL FOLD PLANTERS, 8 ROW WIDE (09) - CHASSIS/ATTACHMENTS

1

1973256C1

TUBE

- seed delivery, 162 inch, No. 1

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337536C1

TUBE,17.45 - 28.5 mm OD, 3300 mm Length

- seed delivery, 130 inch, No. 2

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 3

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 4

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 5

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 6

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 118 inch, No. 7

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 8

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.
