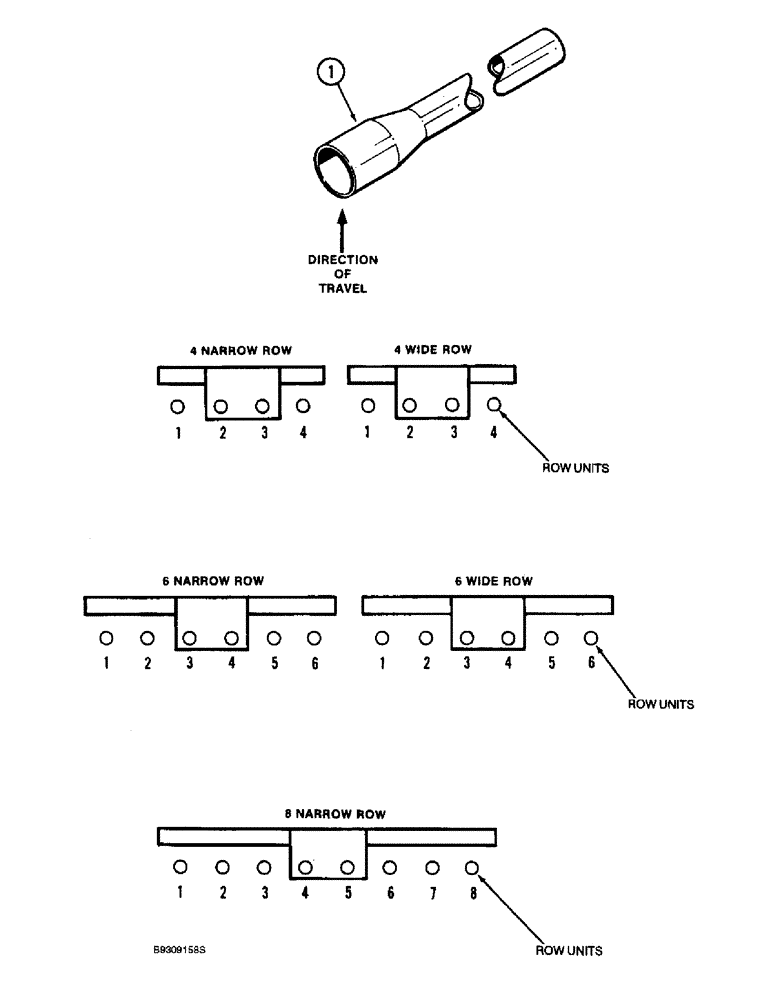

Запчасти Case IH 955 (9C-56[D]) - 6 ROW WIDE (09) - CHASSIS/ATTACHMENTS

1

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 118 inch, No. 1

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 2

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 3

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 4

1шт.

Order 58238C2 tube (flared end), 58 inch long, and cut to length.

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 5

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.

1

141329C2

TUBE,17.5 - 25.4 mm OD, 2690 mm Length

- seed delivery, 106 inch, No. 6

1шт.

Order 130979A2 tube (flared end), 195 inches long, and cut to length.

1шт.
