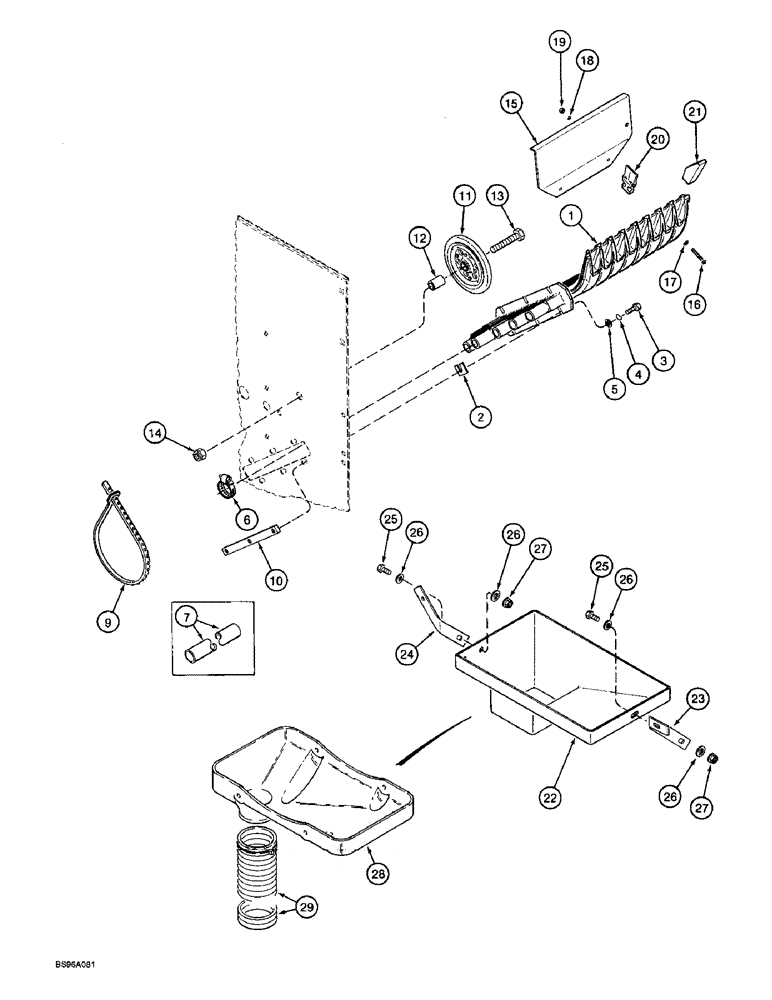

Запчасти Case IH 955 (9C-54) - SEED MODULE DISCHARGE MANIFOLD, ALL RIGID, VERTICAL FOLD, FRONT FOLD & PARALLEL FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

1

141113C3

MANIFOLD

- discharge

1шт.

2

151670C1

SHIM

SHIM - .036 inch, manifold

1шт.

2

935915R1

SHIM,33.02mm OD x 0.38mm Thk

- .015 inch thick, manifold

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

6

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, #16, 0.81/1.50 Type F Worm

1шт.

7

REF

INSTRUCTION

TUBE - seed delivery (See pages 9C-57 through 9C-75 for delivery tubes and breakaway couplers for all planter row versions)

1шт.

9

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

10

147284C1

STRIP

BRACKET - manifold mounting

2шт.

11

548821R3

WHEEL,104.78mm Idler Dia x 133.35mm OD x 20.64mm W

- drum support

1шт.

12

145115C2

SPACER

- support wheel

1шт.

13

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

14

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

15

1279051C2

EXTENSION

PLATE - manifold extension

1шт.

16

440-10628

SCREW,Cross Pan Hd, #6-32 x 1 3/4"

- machine, pan Phillips, No. 6 NC x 1-3/4 inch

2шт.

17

495-31016

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch

2шт.

18

492-11006

LOCK WASHER,#6

Washer, Lock, #6

2шт.

19

225-14106

NUT,#6-32

2шт.

20

1279050C1

SPACER

- manifold extension

2шт.

21

144839C1

STRIP

PLUG - manifold

1шт.

22

141265C1

CHUTE ASSY.

CHUTE - seed funnel

1шт.

Part used on front fold planters only.

1шт.

23

1547160C1

BRACKET

SUPPORT - seed funnel, right-hand, 12 row wide front fold only

1шт.

Part used on front fold planters only.

1шт.

24

1547161C2

BRACKET

SUPPORT - seed funnel, left-hand, 12 row wide front fold only

1шт.

Part used on front fold planters only.

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

Part used on front fold planters only.

1шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

Part used on front fold planters only.

1шт.

27

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

Part used on front fold planters only.

1шт.

28

188287A1

FUNNEL

CHUTE - seed funnel, used on all rigid, vertical fold and parallel front fold planters

1шт.

29

223608A1

HOSE,3.00" ID x 24.00"

- extension, seed funnel, used with 188287A1 funnel only

1шт.
