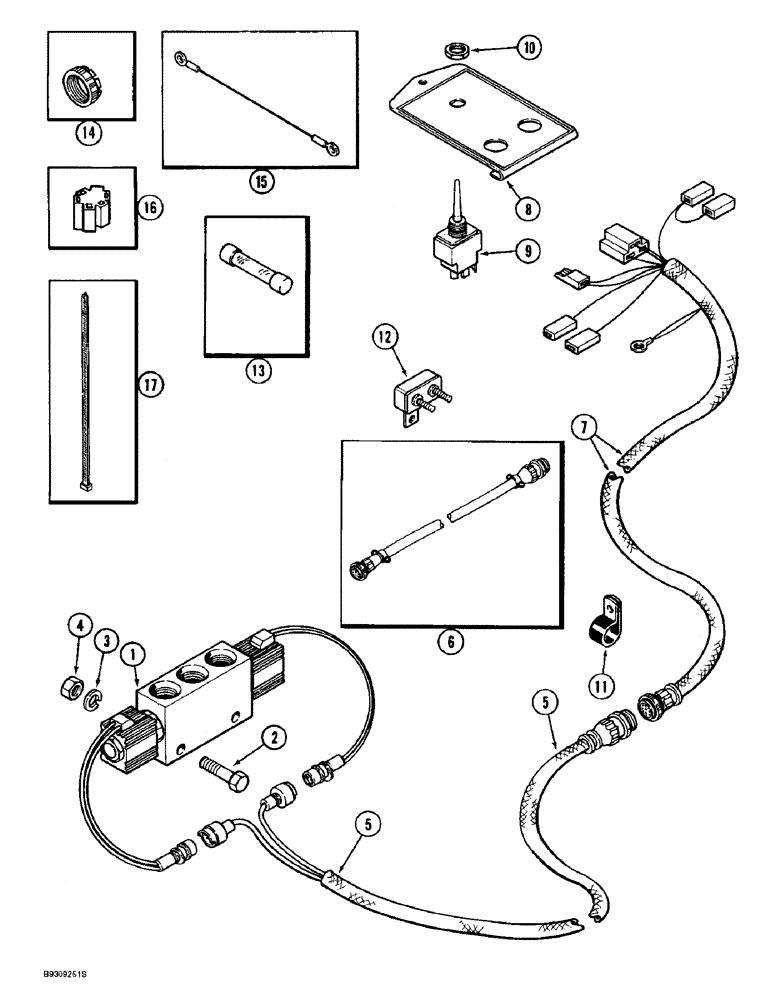

Запчасти Case IH 955 (4-32) - MANUAL SELECTOR VALVE SYSTEM, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD, ALL RIGID (04) - ELECTRICAL SYSTEMS

1

149988C92

VALVE

ASSEMBLY - control, row marker (Modular Controls) (See Page 8-137)

1шт.

2

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

145121C1

HARNESS

- control, at valve

1шт.

6

144910C3

HARNESS

- extension, control, 5497 mm (216 inch) long (8 row wide and 12 row narrow)

1шт.

7

141405C2

HARNESS

- control, at switch

1шт.

8

147230C1

PLATE

ASSEMBLY - control box (Mechanical markers)

1шт.

147218C1

DECAL,Control Right Off Left

- right, off, left (see page 9F-117)

1шт.

9

121542C1

SWITCH

ASSEMBLY - marker (Mechanical markers)

1шт.

10

57603C1

NUT

- hex, special

1шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, harness

3шт.

12

1264471C1

CIRCUIT-BREAKER

BREAKER - circuit, 10 ampere

1шт.

13

223-10

FUSE,10 Amp, Type 3AG

- 10 ampere

1шт.

14

149456C91

SET

KIT - connector ring, set of 10

1шт.

15

117620C1

CABLE

WIRE - 152 mm (6 inch) long

1шт.

16

491058C1

CONTACT HOUSING,Female, Pole

ADAPTER - harness

1шт.

17

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
