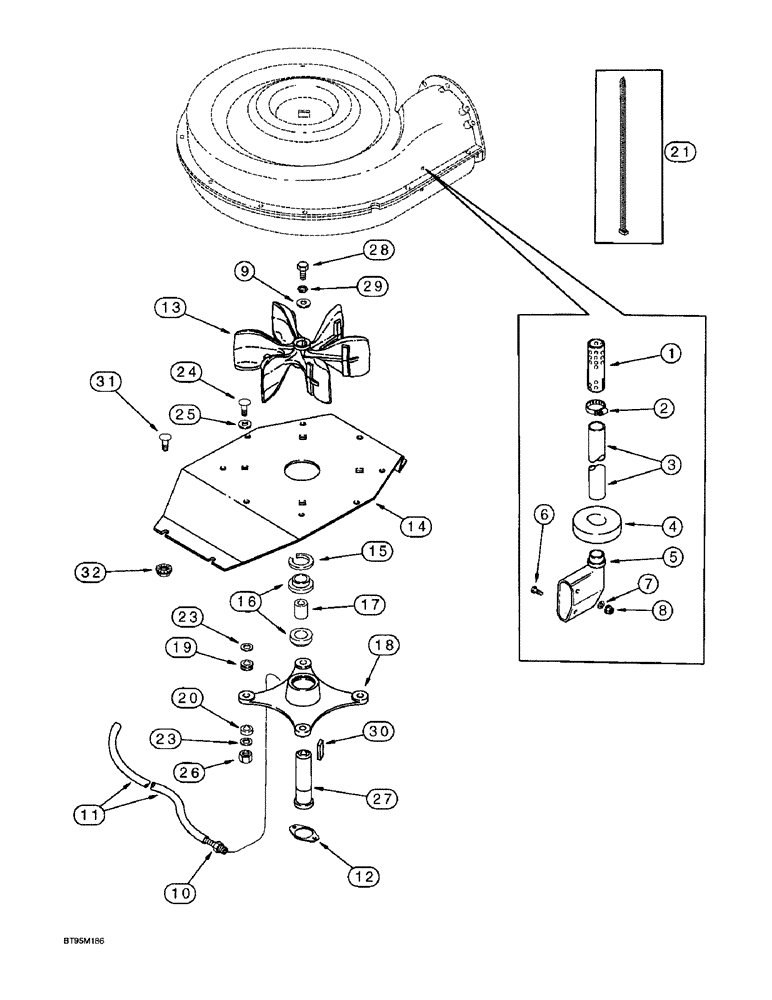

Запчасти Case IH 955 (9C-34) - SEED MODULE FAN, ALL RIGID, VERTICAL FOLD, FRONT FOLD & PARALLEL FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

1

149158C1

PIPE

EXTENSION - bypass

1шт.

2

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

1шт.

3

141030C1

PIPE

- air bypass, all planters except 24 row narrow - front fold

1шт.

3

124124A1

PIPE

- air bypass, 24 row narrow - front fold only

1шт.

4

141075C1

SEAL

- air

1шт.

5

141029C1

SCOOP

- air

1шт.

6

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

- machine, hex head, No. 10 NC x 5/8 inch

2шт.

7

495-31022

WASHER,#10

2шт.

8

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

9

132794H2

WASHER

- fan bearing

1шт.

10

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER - straight, 1/4 barb end x 1/8 inch PT, Drain

1шт.

11

1986013C1

HOSE

- 635 mm (25 inch) long, drain

1шт.

12

1985956C1

GASKET

- blower fan

1шт.

13

57570C2

WHEEL

FAN - blower

1шт.

14

140899C3

SHEET

SUPPORT - fan

1шт.

15

289357R1

RING

- retaining

1шт.

16

566632R92

BALL BEARING,44.04mm ID x 62mm OD x 18mm W

BEARING - ball

2шт.

17

1250846C1

SPACER

- bearing

1шт.

18

136952C3

HOUSING

- fan

1шт.

19

54770H

GROMMET

- housing

4шт.

20

549517R1

BUSHING

- housing

4шт.

21

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

2шт.

23

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

7шт.

24

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

4шт.

25

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

- square hole, 17/32 x 1 x 1/16 inch

1шт.

26

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

27

1250844C1

SHAFT

- rotor

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

29

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

30

479370R1

KEY,1/4" Sq x 2", Par

- square, 1/4 x 2 inch

1шт.

31

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.
