Запчасти Case IH 955 (9C-32) - SEED CHUTE, ALL RIGID, VERTICAL FOLD, FRONT FOLD & PARALLEL FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

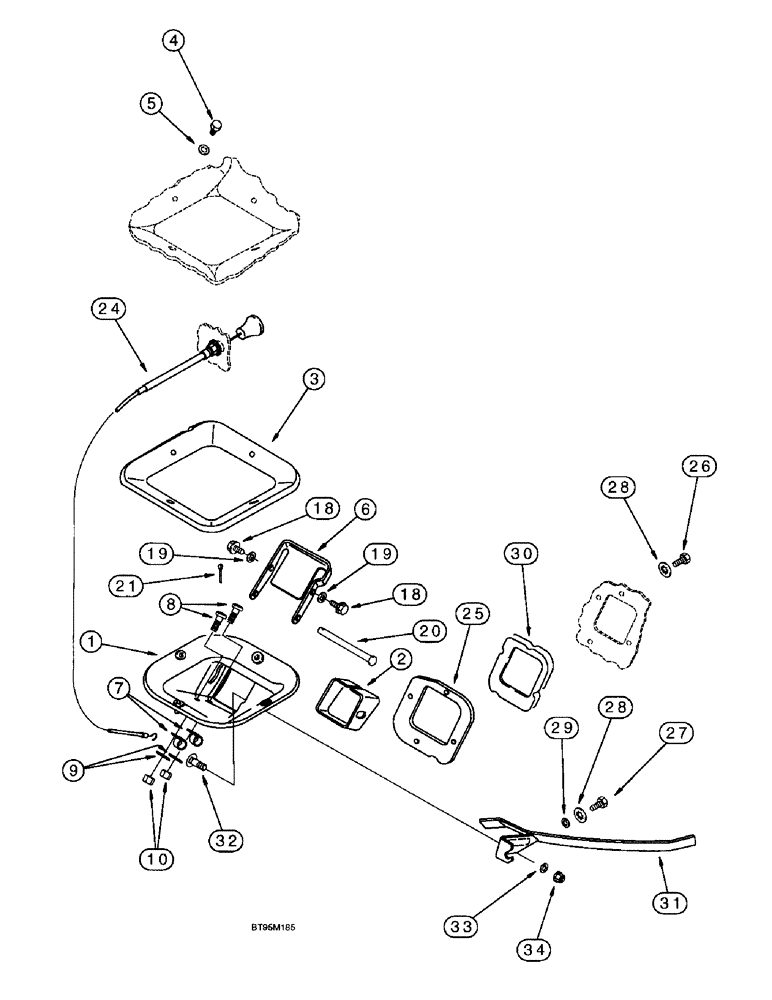

Схема запчастей Case IH 955 - (9C-32) - SEED CHUTE, ALL RIGID, VERTICAL FOLD, FRONT FOLD & PARALLEL FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS
18
2
18
32
19
3
24
30
33
9
7
6
34
28
25
1
26
28
4
21
19
10
8
31
5
20
27
29

Артикул

Название

Примечание

Количество

1

1980542C1

HOUSING

CHUTE - seed

1шт.

2

141516C1

EXTENSION

- seed chute

1шт.

3

140873C4

SEAL

- chute, top

1шт.

4

276-14724

SELF-TAP SCREW,Hex Hd, 1/4" x 1 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1-1/2 inch

4шт.

5

495-81109

WASHER,.281" x 1" x .048"

- flat, 9/32 x 1 x 3/64 inch

4шт.

6

1980504C1

DOOR

GATE - shutoff

1шт.

7

1978928C2

CLAMP

- mounting

2шт.

8

340-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

- machine, pan Phillips, No. 8 NC x 3/4 inch

2шт.

9

493-11017

LOCK WASHER,Ext-Int Tooth, #8

WASHER - internal-external tooth lock, No.8

2шт.

10

225-14108

NUT,#8-32

- hex, No. 8 NC

2шт.

18

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

20

439-5454

HEADED PIN,1/4" x 3 3/8"

PIN - headed, 1/4 x 3-3/8 inch

1шт.

21

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

24

1980775C1

CABLE

-

1шт.

25

140872C1

SUPPORT

- mounting

1шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

29

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

1шт.

30

140871C2

SEAL

- support

1шт.

31

145150C2

BAR

- seed leveling

1шт.

32

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

2шт.

33

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 1/16 inch

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

Выбрано товаров: 25
