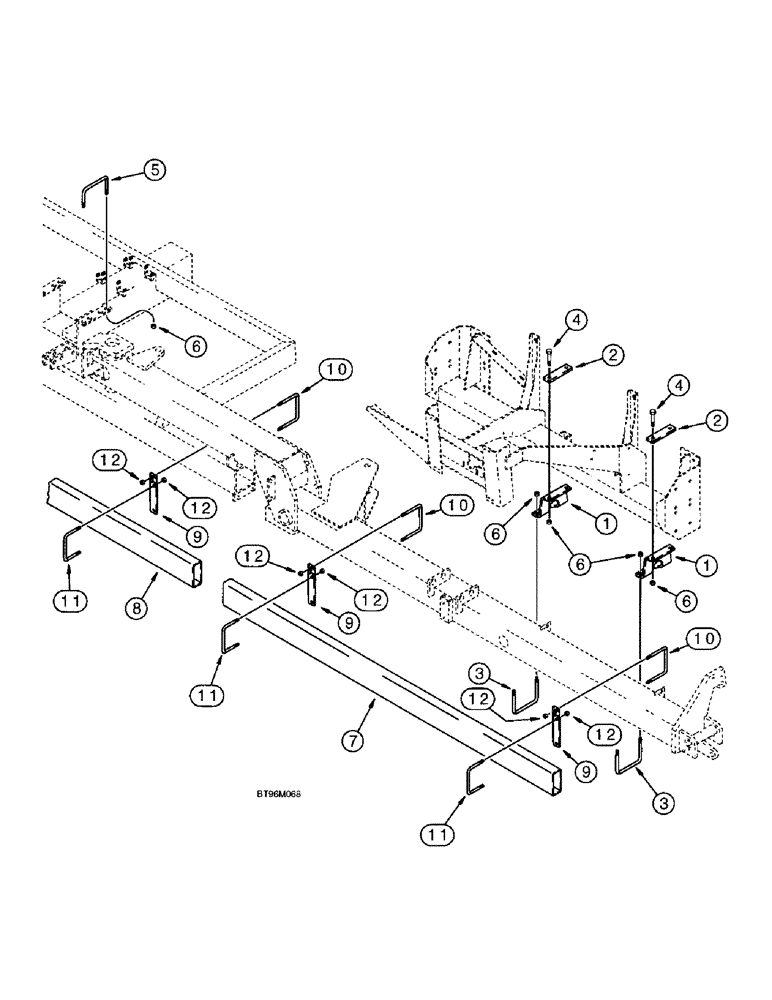

Запчасти Case IH 955 (9C-26) - SEED MODULE FRAME AND ROW UNIT MOUNTING, 12/23 SOLID ROW CROP - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

228423A1

BRACKET

- mounting, module frame to wing frames

9шт.

2

232018A1

PLATE

- mounting, module, Serial Range: frame-bracket

9шт.

3

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, bracket to wing frames

9шт.

4

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

Bracket to plate Hex, 5/8"-11 x 5", G5

18шт.

5

142583A1

U-BOLT

- 5/8 inch NC, 4 x 7 inch, center frame to module frame

4шт.

6

425-1010

NUT,5/8"-11, G5

44шт.

7

220596A1

TUBE

FRAME - mounting, 2235 mm (88 inch) long, row unit and drives to wing frames

2шт.

8

178728A1

FRAME

- mounting, 4120 mm (162-1/4 inch) long, row unit and drives to center frame

1шт.

9

176703A1

BRACKET

- mounting, row unit frame to center frame and wing frames

17шт.

10

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, bracket to wing and center frames

17шт.

11

142583A1

U-BOLT

- 5/8 inch NC, 4 x 7 inch, row unit mounting, Serial Range: frame-bracket

17шт.

12

425-1010

NUT,5/8"-11, G5

68шт.
