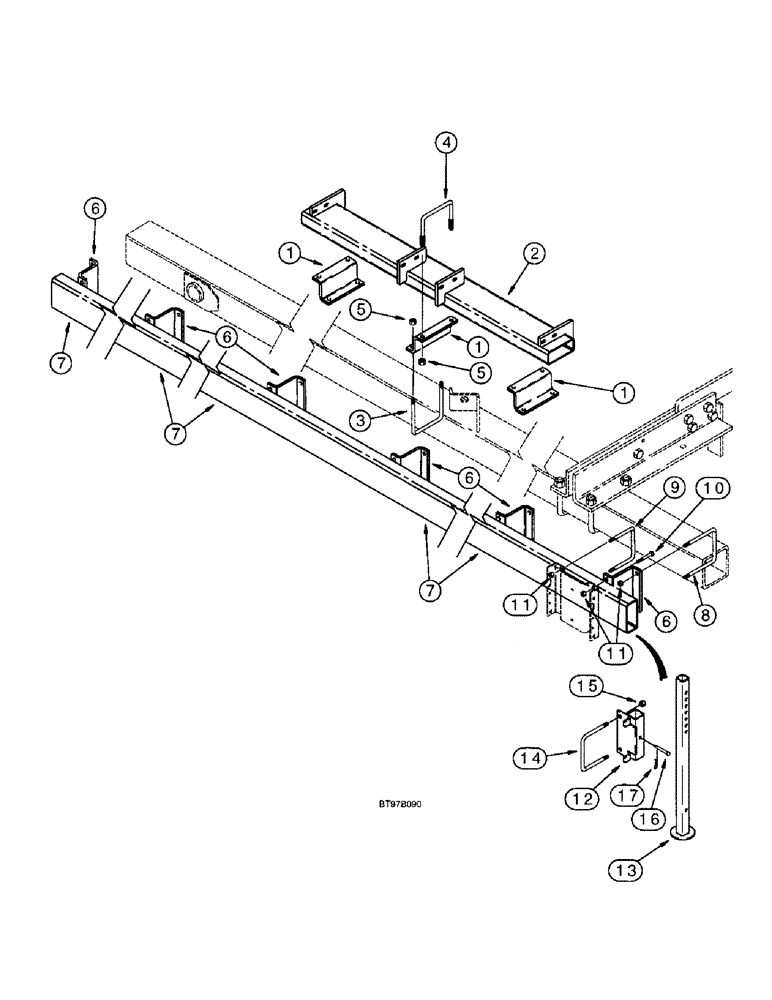

Запчасти Case IH 955 (9C-24) - MODULE FRAME, ROW UNIT AND HOPPER PLATFORM MOUNTING, 12 ROW NARROW - PARALLEL FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

184087A1

BRACKET

- mounting, module frame support to wing frame

3шт.

2

176705A1

BAR

SUPPORT - module frame

1шт.

3

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, bracket to wing frame

3шт.

4

142583A1

U-BOLT

- 5/8 inch NC, 4 x 7 inch, bracket to module frame support

3шт.

5

425-1010

NUT,5/8"-11, G5

6шт.

6

192543A1

BRACKET

- mounting, row unit and hopper platform support to wing frame

6шт.

7

184300A1

TUBE,4444 mm Length

SUPPORT - row unit and hopper platform

1шт.

8

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, bracket to wing frame

6шт.

9

142583A1

U-BOLT

- 5/8 inch NC, 4 x 7 inch, row unit bracket to row unit and hopper platform support

6шт.

10

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Mounting bracket to row unit and hopper platform support Hex, 5/8"-11 x 4 1/2", G5

12шт.

11

425-1010

NUT,5/8"-11, G5

36шт.

12

234981A1

SUPPORT

- stand, wing frame

1шт.

13

234984A1

SUPPORT

STAND - support, wing frame

1шт.

14

142583A1

U-BOLT

- 5/8 inch NC, 4 x 7 inch

1шт.

15

425-1010

NUT,5/8"-11, G5

2шт.

16

439-1856

HEADED PIN,1/2" x 3 1/2"

PIN - headed, 1/2 x 3-1/2 inch, grade 2

1шт.

17

1978738C1

HAIR PIN COTTER

3/16"

1шт.
