Запчасти Case IH 955 (4-30) - MARKER CONTROL BOX, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD, ALL RIGID (04) - ELECTRICAL SYSTEMS

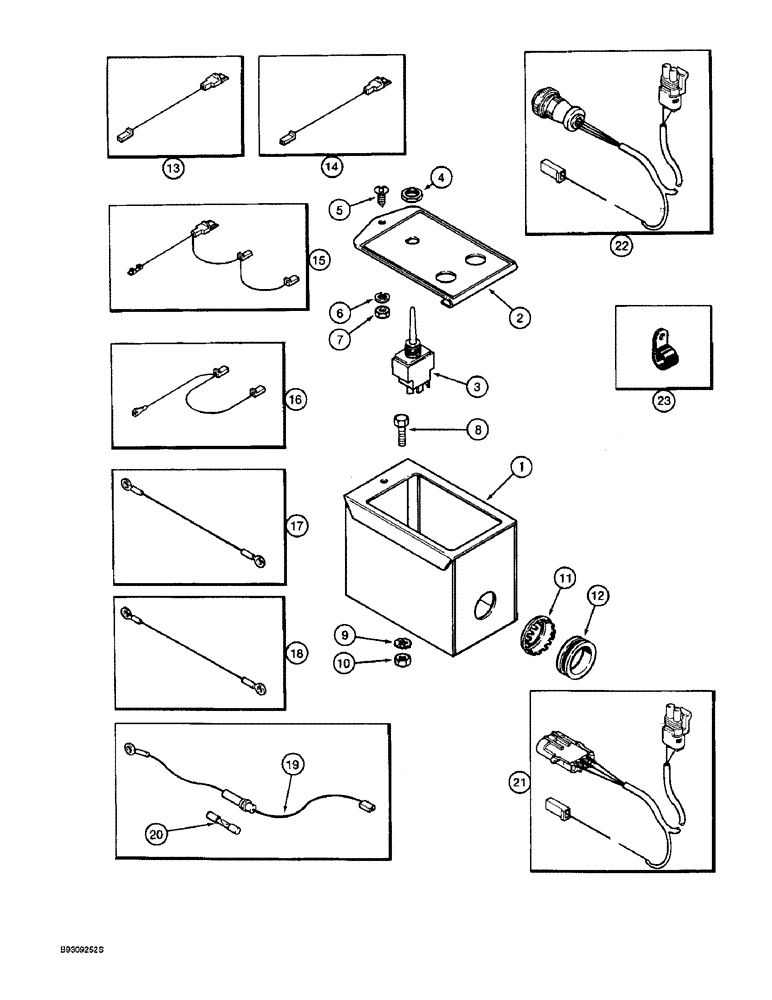

Схема запчастей Case IH 955 - (4-30) - MARKER CONTROL BOX, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD, ALL RIGID (04) - ELECTRICAL SYSTEMS
8
16
3
21
14
2
4
20
17
22
19
18
7
15
10
5
9
12
11
23
1
6
13

Артикул

Название

Примечание

Количество

1

116259C4

BOX

- control, marker

1шт.

2

147230C1

PLATE

ASSEMBLY - control box (Includes decal)

1шт.

147218C1

DECAL,Control Right Off Left

- right, off, left (see page 9F-117 for decal)

1шт.

3

121542C1

SWITCH

ASSEMBLY - marker, marker

1шт.

4

57603C1

NUT

- hex, special

1шт.

5

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/8 inch

1шт.

6

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7

225-14210

NUT,#10-32

2шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

9

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

11

1264374C1

PLUG

- control box

1шт.

12

169851C1

GROMMET

- rubber, control box

1шт.

13

A181761

CABLE

WIRE - marker control, 2030 mm (80 inch) long, 2 wheel drive Case or CASE IH Tractors

1шт.

14

A181758

CABLE

WIRE - marker control, 2540 mm (100 inch) long, 4 wheel drive Case or CASE IH Tractors

1шт.

15

A181760

CABLE

WIRE - connector, cab, 2 wheel drive Case or CASE IH Tractors

1шт.

16

A181753

CABLE

WIRE - connector, cab, 4 wheel drive Case or CASE IH Tractors

1шт.

17

111323C1

CABLE

WIRE - green, 8 inch long, 16 gauge

1шт.

18

111322C1

CABLE

WIRE - black, 8 inch long, 12 gauge

1шт.

19

149506C1

CABLE

WIRE - includes fuse, switch

1шт.

20

223-10

FUSE,10 Amp, Type 3AG

- 10 ampere

1шт.

21

1964768C1

HARNESS

- marker adapter (7100 Series Tractors)

1шт.

22

1344888C2

HARNESS

- marker adapter (5100 Series Tractors)

1шт.

23

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

Выбрано товаров: 24
