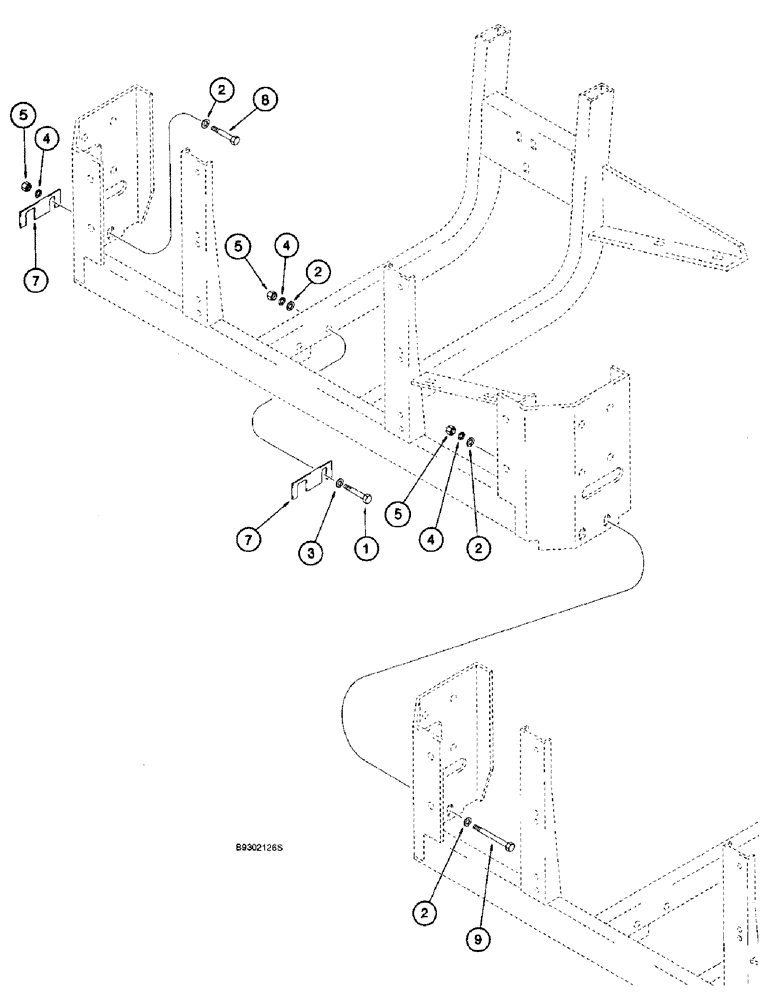

Запчасти Case IH 955 (9C-22[B]) - SEED MODULE HOUSING MOUNTING, 12, 16 & 24 NARROW - FRONT FOLD, 12 ROW WIDE - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

2

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

24шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

5

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

16шт.

7

104453A1

SHIM

- module mounting

1шт.

8

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

8шт.

9

Not used this application

1шт.
