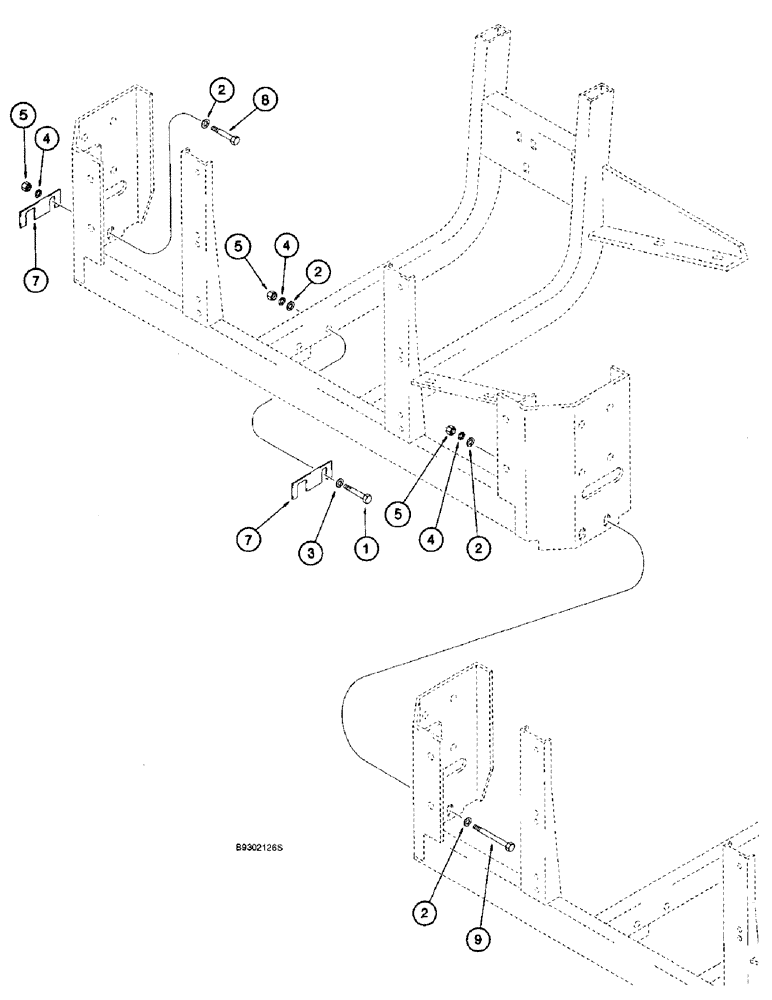

Запчасти Case IH 955 (9C-22[A]) - SEED MODULE HOUSING MOUNTING, 8 ROW WIDE & 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

4-8шт.

2

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

12-20шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4-8шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8-14шт.

5

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

8-14шт.

7

104453A1

SHIM

- module mounting

1шт.

8

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

9

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

2шт.
