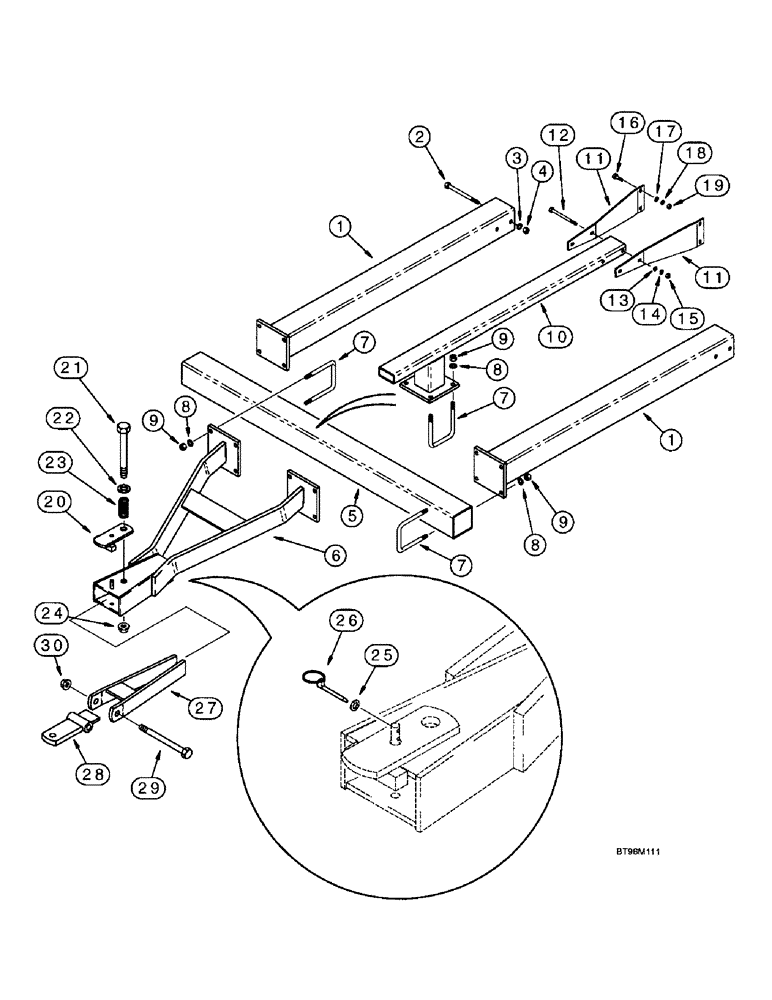

Запчасти Case IH 955 (9C-20) - REAR TRAILING TANK HITCH, USED W/BULK DRY FERTILIZER CART - 12 & 16 NARROW - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

125139A1

SUPPORT

- hitch frame

2шт.

2

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

4шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

5

125180A1

TUBE,1751 mm Length

FRAME - hitch crossmember

1шт.

6

125132A1

TRAILER HITCH

HITCH - trailing tank

1шт.

7

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

- 5/8 inch NC, 5 x 5 inch

10шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

20шт.

9

425-1010

NUT,5/8"-11, G5

20шт.

10

254232A1

FRAME

- hitch, center

1шт.

11

254238A1

PLATE

- mounting, hitch center frame

2шт.

12

426-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

- hex, 1/2 NC x 5-1/2 inch, grade 8

2шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

17

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

1976396C1

LATCH

- tank hitch

1шт.

21

413-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- hex, 1 NC x 6-1/2 inch

1шт.

22

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

23

1986194C1

SPRING

- tank hitch

1шт.

24

23443R1

LOCK NUT,1"-8, GC

NUT - hex, 1 inch NC

1шт.

25

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

26

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

1шт.

27

1976399C1

GUIDE

- tongue

1шт.

28

1976402C1

TOW BAR

TONGUE - hitch

1шт.

29

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

- hex, 1 NC x 7 inch

1шт.

30

23443R1

LOCK NUT,1"-8, GC

NUT - hex, 1 inch NC

1шт.
