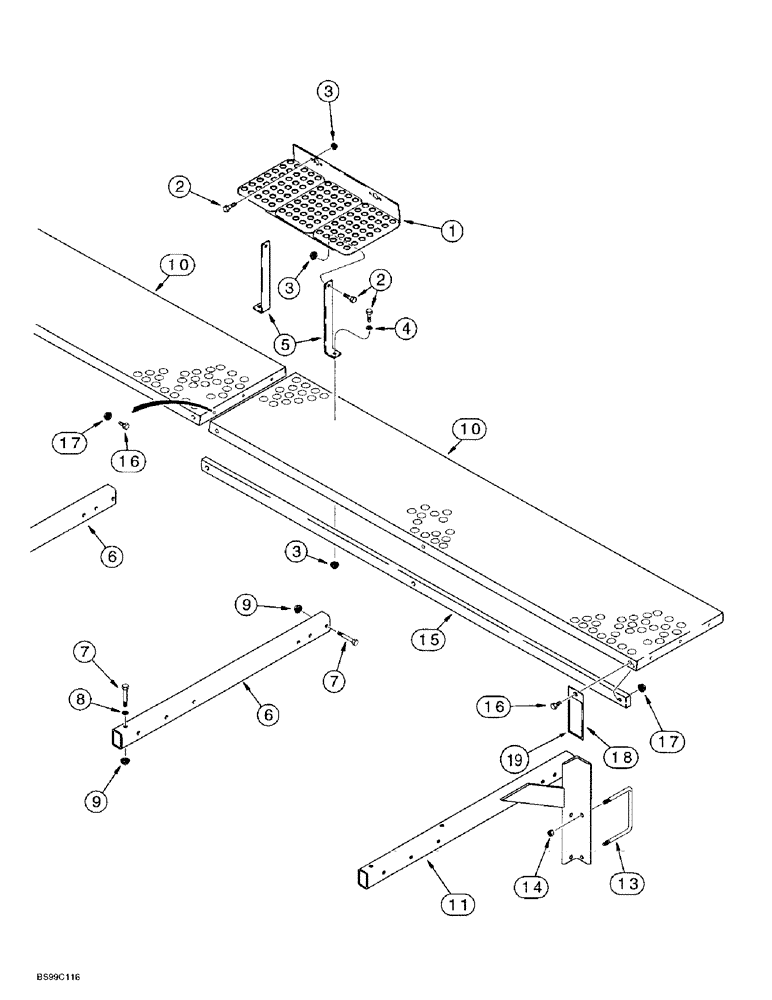

Запчасти Case IH 955 (9C-14) - CENTER FRAME PLATFORM AND STEP, 12/23 SOLID ROW CROP - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1547155C1

PLATFORM

- hopper

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

3

231-5146

FLANGE NUT,3/8"-16

8шт.

4

95-81090

WASHER,13/32" x 1 3/4" x .120"

- flat, 13/32 x 1-3/4 x 1/8 inch

2шт.

5

246673A1

BRACKET

- step support

2шт.

6

197794A1

PLATFORM

SUPPORT - platform

2шт.

7

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

12шт.

8

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.

10

195318A1

PLATFORM

- perforated, 386 (15-3/16) x 2235 mm (88 inch) long

2шт.

11

220477A1

SUPPORT

- platform, right-hand

1шт.

12

220478A1

SUPPORT

- platform, left-hand, not shown

1шт.

13

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

14

425-1010

NUT,5/8"-11, G5

4шт.

15

259354A1

BAR

- platform support

4шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

15шт.

17

231-5146

FLANGE NUT,3/8"-16

15шт.

18

259556A1

PLATE

- reflector

2шт.

19

1284374C1

REFLECTOR,Reflector Red

- red

1шт.
