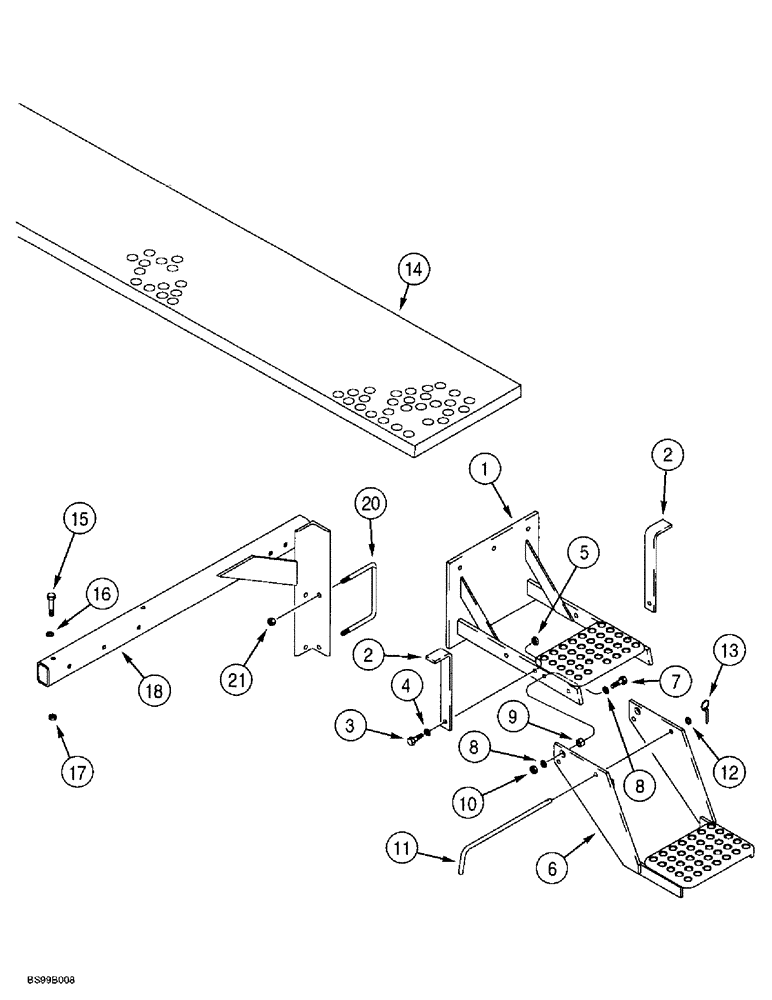

Запчасти Case IH 955 (9C-12) - WING PLATFORM AND STEPS, 12/23 SOLID ROW CROP - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

197959A1

SUPPORT

- with step

2шт.

2

197818A1

STRAP

- step support

4шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

232608A1

STEP

- lower

2шт.

7

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

4шт.

8

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

8шт.

9

159716C1

SPACER,3/4" Tube x 5/8"

- tubular, 17/32 x 3/4 x 9/16 inch

4шт.

10

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

4шт.

11

233121A1

PIN

- mounting support

2шт.

12

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

2шт.

13

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

2шт.

14

195317A1

PLATFORM

- perforated, 386 (15-3/16) x 2489 mm (98 inch) long

2шт.

15

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

12шт.

16

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

12шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.

18

220477A1

SUPPORT

- platform, right-hand

3шт.

19

220478A1

SUPPORT

- platform, left-hand, not shown

3шт.

20

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

6шт.

21

425-1010

NUT,5/8"-11, G5

12шт.
