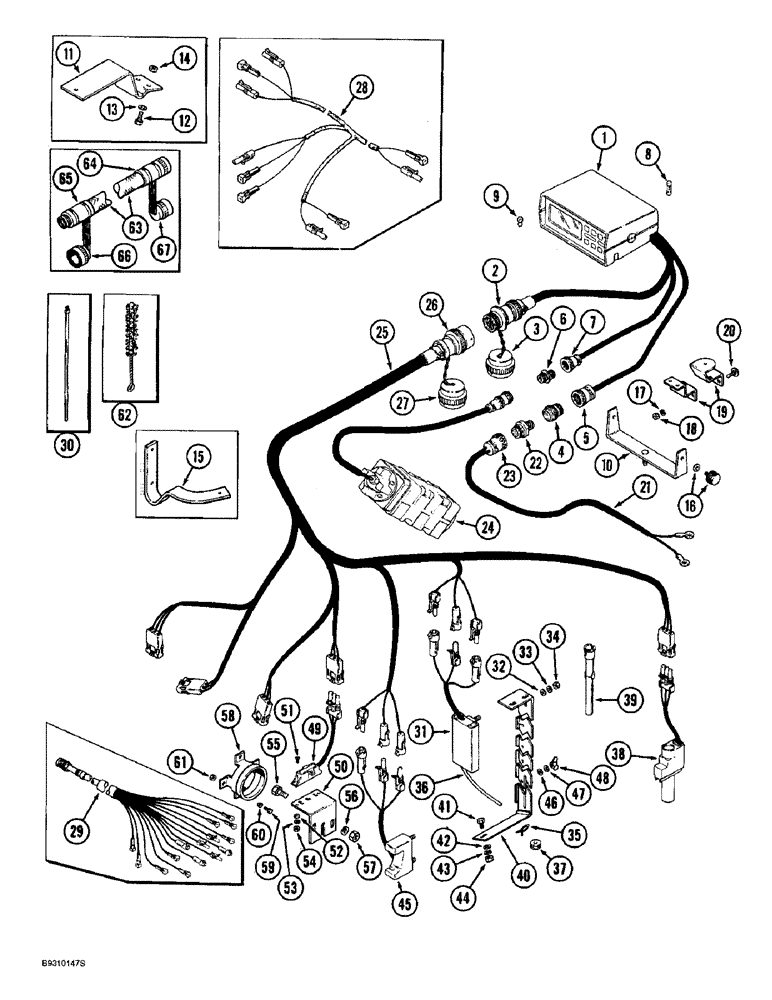

Запчасти Case IH 955 (4-26[B]) - EARLY RISER MONITOR SYSTEM, 12/23 SOLID ROW CROP, FRONT FOLD (04) - ELECTRICAL SYSTEMS

1

1935062C2

REMAN-ELECT GAUGE

MONITOR - Early Riser, remanufactured (see 1935063C2)

1шт.

1

1935063C2

CORE-MONITOR

RETURN NUMBER - monitor, use this number for return core credit

1шт.

1

1336000C2

CONTROL

MONITOR - Early Riser, new, Includes: Ref. 2 - 7

1шт.

2

225337C1

ELEC CONNECTOR,20 - 22

CONNECTOR - electrical, type LV

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

3

245041C1

CAP

- electrical connector, type EC

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

4

225165C1

ELEC CONNECTOR

CONNECTOR - electrical, type GQ

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

5

225141C1

MULTIPOLE CONNECTOR

CLAMP - cable, type GK

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

6

1994740C1

ELEC CONNECTOR,Female, 4 Pin

CONNECTOR - electrical, type MD

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

7

1994741C1

CONTACT HOUSING

CLAMP - cable, type MC

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

8

223-26

FUSE,5 Amp, Type 3AG

- 3AG, 5 ampere

2шт.

9

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

2шт.

10

1261523C91

BRACKET

- mounting

1шт.

11

90905C2

BRACKET, SUPPORTING

BRACKET - mounting (J I Case Tractor)

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

1960456C1

BRACKET

- mounting (5100, 5200, 7100 and 7200 Series Tractors)

1шт.

15a

60-6821T1

SUPPORT

BRACKET - mounting (9200 Series Tractors)

1шт.

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

16

1336002C1

KNOB

KIT - knob, includes 2 knobs and 2 washers

1шт.

17

392-11031

LOCK WASHER,5/16"

5/16"

1шт.

18

325-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

19

1261522C91

BRACKET, SUPPORTING

KIT - bracket, mounting (88 Series Tractors)

1шт.

20

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

21

1336001C2

CABLE

HARNESS ASSEMBLY - battery, Includes: Ref. 22 & 23

1шт.

22

225362C1

TERMINAL CONNECTOR

CONNECTOR - electrical, type ME

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

23

225141C1

MULTIPOLE CONNECTOR

CLAMP - cable, type GK

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

24

97576C1

SENSOR

- radar, order from Machinery Price List, true ground speed

1шт.

24

BN95030AR

SENSOR

955 CASE IH TRAILING PLANTER, radar, order from Machinery Price List, true ground speed (10/95-)

1шт.

24

BN95030AC

CORE-SENSOR

Return Number

1шт.

25

1336008C2

HARNESS

- monitor (4 row) (4 row), Includes: Ref. 26 & 27

1шт.

25

1336009C2

HARNESS

- monitor (6 row) (6 row), Includes: Ref. 26 & 27

1шт.

25

1336010C3

HARNESS

- monitor (8 row), Includes: Ref. 26 & 27

1шт.

25

1336011C3

HARNESS

- monitor (12 row narrow - vertical fold), Includes: Ref. 26 & 27

1шт.

25

119769A1

HARNESS

- monitor (12 row narrow - front fold), Includes: Ref. 26 & 27

1шт.

25

180512A1

HARNESS

- monitor (12 row wide - front fold), Includes: Ref. 26 & 27

1шт.

25

115130A1

HARNESS

- monitor (16 row narrow - front fold), Includes: Ref. 26 & 27

1шт.

25

119771A1

HARNESS

- monitor, center (24 row narrow - front fold), Includes: Ref. 26 & 27

1шт.

25

183931A1

HARNESS

- monitor, center (12 row narrow - parallel front fold), Includes: Ref. 26 & 27

1шт.

25

193201A1

HARNESS

- monitor, center (12/23 solid row crop - front fold), Includes: Ref. 26 & 27

1шт.

26

225336C1

ELEC CONNECTOR,Male, 35 Pin

CONNECTOR - electrical, type LU

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

27

245043C1

CAP

- electrical connector, type EC

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

27a

232066A1

HARNESS

- monitor adapter, 12 row to 23 row, not shown

1шт.

28

1336016C2

HARNESS

- monitor extension (12 row narrow - vertical fold)

2шт.

29

126191A1

HARNESS

- monitor extension, left-hand wing (24 row narrow)

1шт.

29

126192A1

HARNESS

- monitor extension, right-hand wing (24 row narrow)

1шт.

29a

199696A1

HARNESS

- monitor extension, left-hand wing (12 row narrow - parallel front fold) not shown

1шт.

29b

199697A1

HARNESS

- monitor extension, right-hand wing (12 row narrow - parallel front fold) not shown

1шт.

29c

222284A1

HARNESS

- monitor extension, left-hand wing (12/23 solid row crop) not shown

1шт.

29d

222285A1

HARNESS

- monitor extension, right-hand wing (12/23 solid row crop) not shown

1шт.

30

217285C1

STRAP

- tie, 4 inch

1шт.

30

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

30

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

1336005C2

PACKAGE

KIT - sensor, air pressure (includes items 31 through 37)

1-3шт.

31

NSS

NOT SOLD SEPARAT

SENSOR - air pressure (Order 1336005C2)

1шт.

32

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

35

214-1304

HOSE CLAMP,#4, 1/4", Spring

CLAMP - spring type, 1/4 inch

2шт.

36

1336007C1

AIR HOSE,0.13" ID x 36.00"

" 0.13" ID x 36.00"

1шт.

37

1336026C1

GROMMET

- rubber, air hose

1шт.

38

1978894C1

SENSOR

- seed, hi-rate

1шт.

39

72902C2

TUBE,0.48" ID, 0.6" OD, 7.86" Length

- seed, beet

1шт.

40

1336021C1

BRACKET

- hopper level (4, 6 and 8 row)

2шт.

40

1336021C1

BRACKET

- hopper level (12 row narrow and wide, 16 row narrow)

2шт.

40

124878A1

BRACKET

- hopper level (24 row narrow and 12/23 solid row crop)

3шт.

41

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

42

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

45

1336023C2

SENSOR

- hopper level

1шт.

46

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

47

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

48

129-900

WING NUT,Locking, #10-32

NUT - wing, No. 10 NF

2шт.

49

1336025C2

SENSOR

- press wheel, distance

1шт.

50

1264112C2

BRACKET

- mounting

1шт.

51

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

- machine, pan Phillips, No. 6 NC x 1/2 inch

2шт.

52

495-31016

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch

4шт.

53

493-11014

LOCK WASHER,Ext-Int Tooth, #6

WASHER - internal-external tooth lock, 1/8 inch

2шт.

54

225-14106

NUT,#6-32

2шт.

55

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

57

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

58

1264113C1

MAGNET

- sensor

1шт.

59

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

60

1264197C1

WASHER

- shoulder, special

4шт.

61

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

62

128817C1

BRUSH, COMMUTATOR

BRUSH - sensor cleaning

1шт.

63

1336017C3

HARNESS

ASSEMBLY - extension, 4572 mm (180 inch) long (Used with large 4 wheel drive tractor), Includes: Ref. 64 - 67

1шт.

64

225336C1

ELEC CONNECTOR,Male, 35 Pin

CONNECTOR - electrical, type LU

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

65

225337C1

ELEC CONNECTOR,20 - 22

CONNECTOR - electrical, type LV

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

66

245041C1

CAP

- electrical connector, type EC

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

67

245043C1

CAP

- electrical connector, type EB

1шт.

Items with an asterisk are included in Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.
