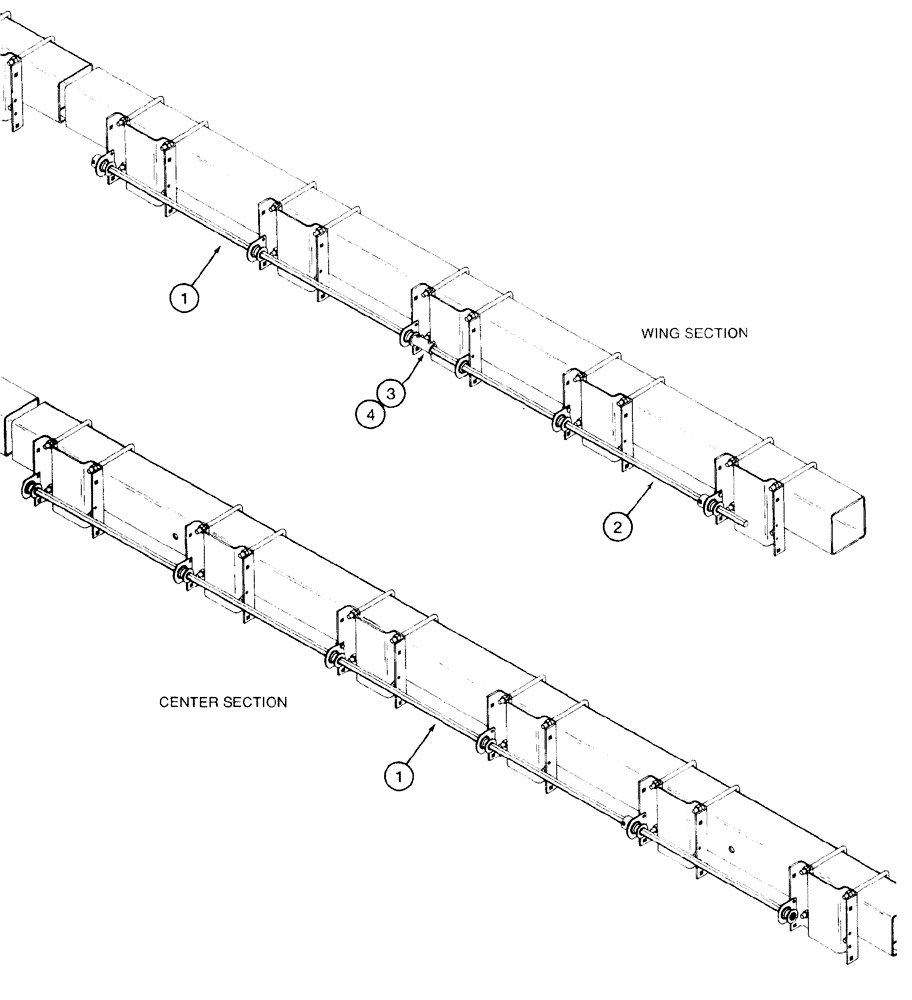

Запчасти Case IH 955 (9B-80) - CHEMICAL DRIVE SHAFTS, AFS, 16 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

117008A1

SHAFT

- drive, hex, 22 (7/8) x 1701 mm (67 inch) long, center

2шт.

2

117008A1

SHAFT

- drive, hex, 22 (7/8) x 1701 mm (67 inch) long, wing

2шт.

2

135382A1

BAR

SHAFT - drive, hex, 22 (7/8) x 1440 mm (56-11/16 inch) long, wing

2шт.

3

1254283C1

COUPLING

COUPLING - 3-9/16 inch (90 mm) long, used with granular chemical attachment, 16 row narrow only

2шт.

4

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point, used with granular chemical attachment, 16 row narrow only

8шт.
