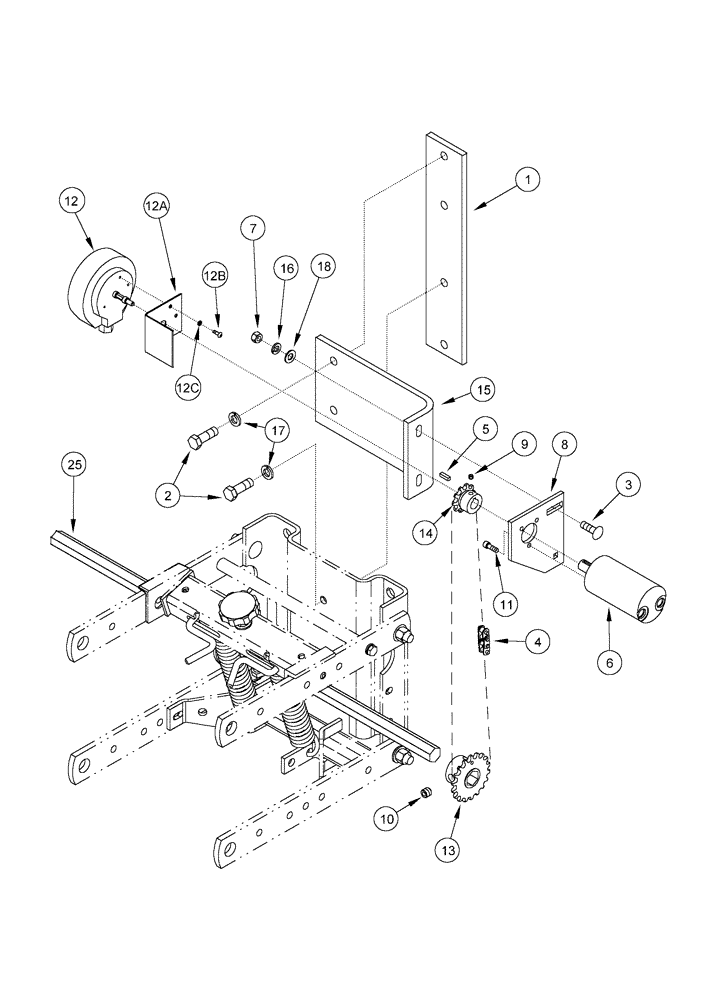

Запчасти Case IH 955 (9B-78) - GRANULAR CHEMICAL DRIVE, AFS PLANTER, 12 ROW AND 16 ROW NARROW & 12/23 SRC (09) - CHASSIS/ATTACHMENTS

1

336948A1

BAR ASSY.

BAR -

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

3

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - roller, use 65 links of 1790D bulk chain, and one connector link 241-1314

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

5

475642R1

KEY,3/16" Sq x 11/16", Par

- 3/16 square x 11/16 inch long

1шт.

6

284797A1

MOTOR

- meter drive

1шт.

6

284797A1R

REMAN-HYD MOTOR

955 CASE IH TRAILING PLANTER, meter drive, AFS PLANTER, 12 ROW AND 16 ROW NARROW & 12/23 SRC (10/95-)

1шт.

6

284797A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

304296A1

SEAL KIT

- motor seal, Eaton, not shown

1шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

304618A1

BRACKET

- motor mount

1шт.

9

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch, cup pt

2шт.

10

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

2шт.

11

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

BOLT - hex socket, 1/4 NF x 3/4 inch

3шт.

12

296164A1

SENSOR

KIT - application rate sensor

1шт.

12a

294473A1

BRACKET

- anti-rotation

1шт.

12b

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1/2 inch

3шт.

12b

492-11008

LOCK WASHER,#8

Washer, Lock, #8

3шт.

13

103681A1

SPROCKET

- 18 teeth

1шт.

141572C2

COLLAR

HUB - sprocket

1шт.

14

232893A1

SPROCKET

- drive (10 tooth)

1шт.

15

336950A1

SUPPORT

- granular chemical drive

1шт.

16

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

- flat, 13/32 x 133/16 x 1/16 inch, hardened

2шт.

25

117008A1

SHAFT

- drive, hex, 22 (7/8) x 1701 mm (67 inch) long

1шт.

25

135382A1

BAR

SHAFT - drive, hex, 22 (7/8) x 1440 mm (56-11/16 inch) long

1шт.

26

1254283C1

COUPLING

COUPLING - 3-9/16 inch (90 mm) long, not shown

1шт.

27

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point, not shown

1шт.
