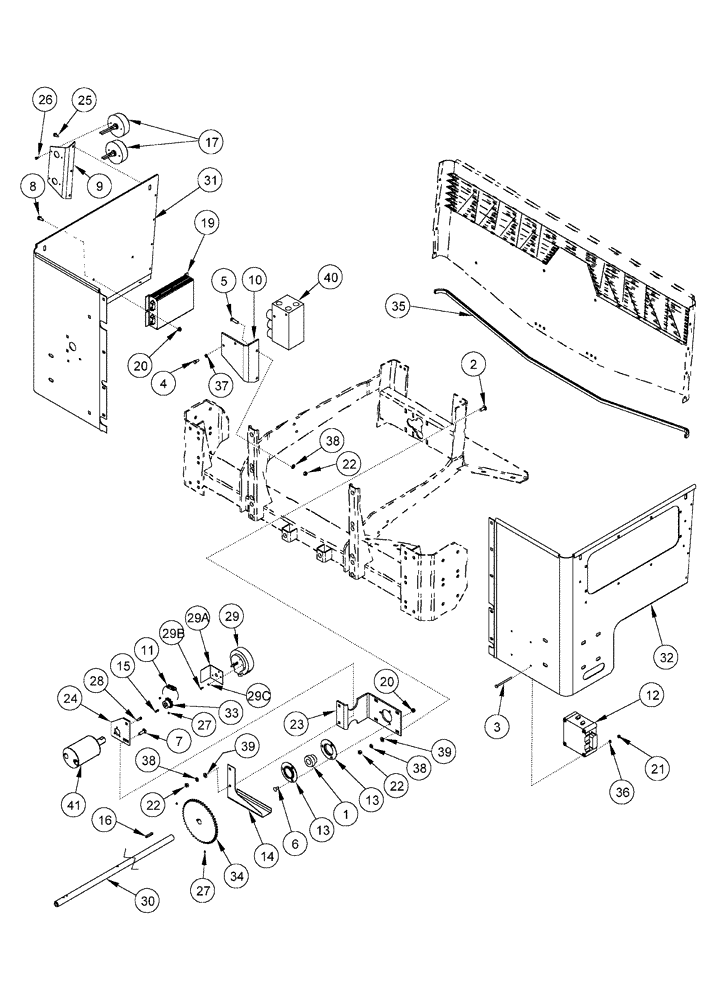

Запчасти Case IH 955 (9B-76) - SEED DRUM DRIVE, AFS PLANTER, 12 ROW AND 16 ROW NARROW AND 12/23 SRC (09) - CHASSIS/ATTACHMENTS

1

482302R92

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

- ball with locking collar

1шт.

455102R21

COLLAR

- locking, bearing, includes set screw

1шт.

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

- ball

1шт.

2

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch, grade 2

4шт.

3

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

- hex, 1/4 NC x 3-1/2 inch

4шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

3шт.

7

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

8

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

298994A1

BRACKET

- tail lamp support, 12/23 only

2шт.

10

309646A1

BRACKET

- valve mounting

1шт.

11

NSS

NOT SOLD SEPARAT

CHAIN - hydraulic drive, use 63 links of 1790D bulk chain, one connector link 241-1314 and one offset link 241-1714

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

241-1714

CHAIN LINK

LINK - offset, single pitch, No. 40, 1/2 inch pitch

1шт.

12

293807A2

BOARD, PRINTED CIRCU

MODULE - bin level gateway

1шт.

13

937517R1

FLANGE

- bearing

2шт.

14

324501A1

GUARD

- chain, for 12/23 SRC only

1шт.

15

475642R1

KEY,3/16" Sq x 11/16", Par

- 3/16 square x 11/16 inch long

1шт.

16

Y24430

KEY,1/4" Sq x 1 1/2", Par

- square parallel, 1/4 x 1-1/2 inch

1шт.

17

91986C91

LIGHT

LAMP ASSEMBLY - tail lamp, see page 4-13, 12/23 only

4шт.

19

330524A1

BOARD, PRINTED CIRCU

MODULE - multi-channel controller

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

21

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

22

425-106

NUT,3/8"-16, Cl 5

8шт.

23

189947A1

PLATE

- shaft adjustment

1шт.

24

304618A1

BRACKET

- motor mount

1шт.

25

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

- hex head, self-tapping, 5/16 NC x 13/16 inch, 12/23 only

6шт.

26

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex washer head, No. 10-16 x 5/8 inch, 12/23 only

8шт.

27

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch, cup pt

4шт.

28

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

BOLT - hex socket, 1/4 NF x 3/4 inch

3шт.

29

296164A1

SENSOR

KIT - application rate sensor

1шт.

29a

294473A1

BRACKET

- anti-rotation

1шт.

29b

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1/2 inch

3шт.

29c

492-11008

LOCK WASHER,#8

Washer, Lock, #8

3шт.

30

189952A1

SHAFT

- drum drive

1шт.

31

1995900C3

SHEET

PANEL - module, right hand

1шт.

32

1995901C2

SHEET

PANEL - module, left-hand

1шт.

33

232893A1

SPROCKET

- drive (10 tooth)

1шт.

34

232895A1

SPROCKET ASSY.

SPROCKET - driven (50 tooth)

1шт.

35

296129A1

MOLDING

TRIM - module

1шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

37

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

38

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

40

REF

INSTRUCTION

VALVE ASSEMBLY - multi-variable, See Page 8-183

1шт.

41

281070A1

MOTOR

- hydraulic drive

1шт.
