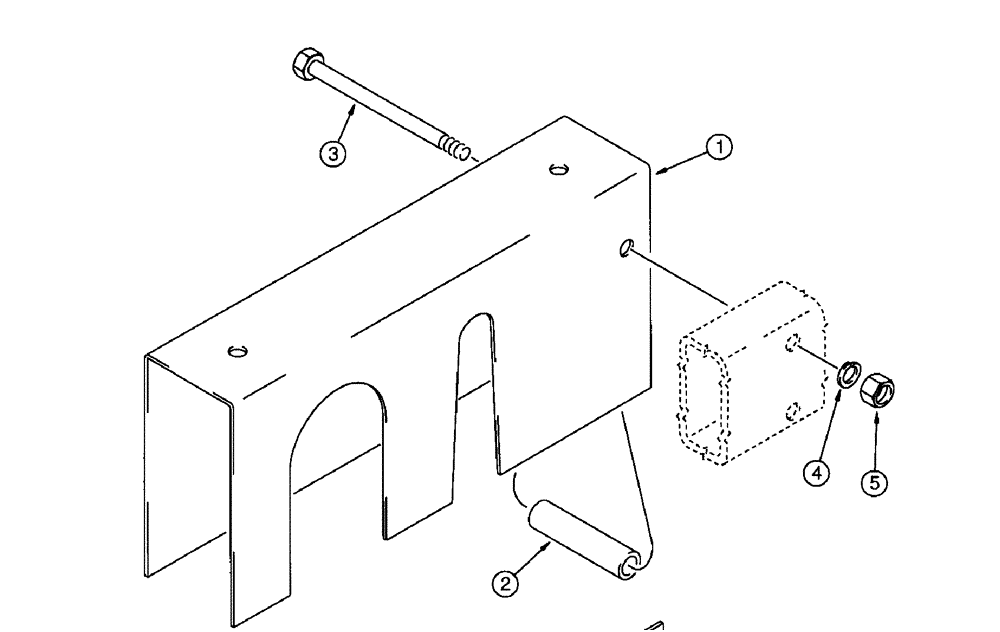

Запчасти Case IH 955 (9B-72[A]) - DRIVE WHEEL CHAIN GUARD - ALL VERTICAL FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

1

147233C2

SUPPORT

GUARD - chain, left-hand (Shown)

1шт.

1

147234C2

SUPPORT

GUARD - chain, right-hand

1шт.

2

147232C1

SPACER

- chain guard

4шт.

3

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
