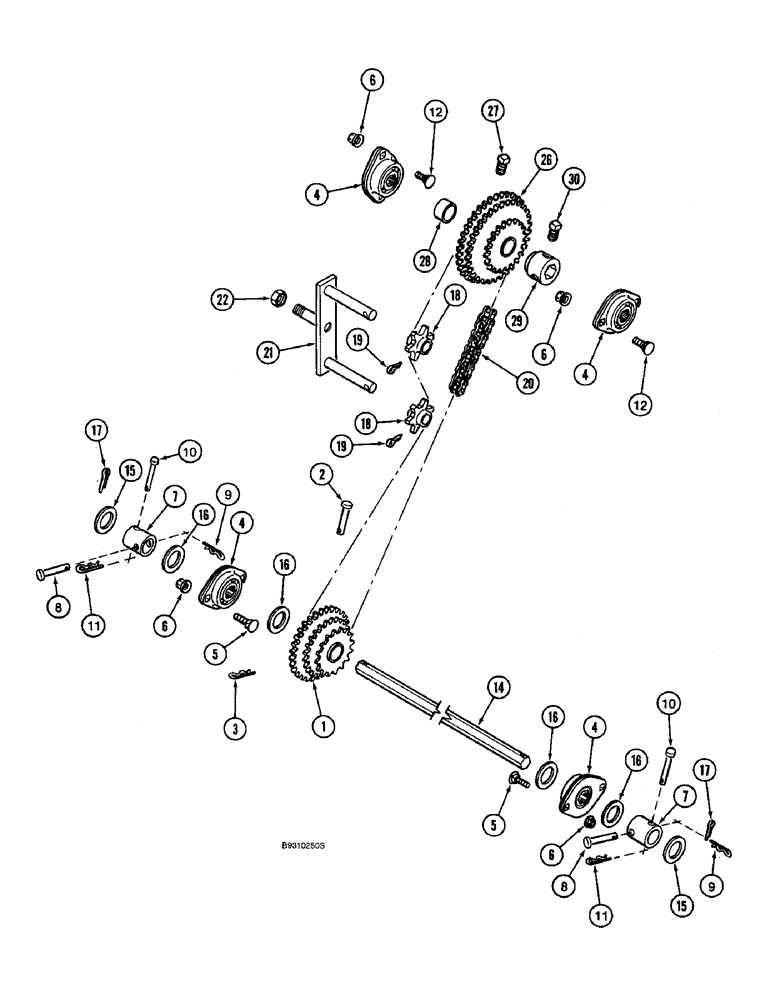

Запчасти Case IH 955 (9B-64) - SECONDARY FERTILIZER DRIVE - DRY, 4 ROW NARROW - RIGID, 4 ROW WIDE - RIGID (09) - CHASSIS/ATTACHMENTS

1

1267911C1

SPROCKET

- triple, 16, 24 and 30 teeth

1шт.

1

1264352C1

SPROCKET ASSY.

SPROCKET - triple, 20, 34 and 36 teeth

1шт.

2

439-1432

HEADED PIN,1/4" x 2", G2

PIN - headed, 1/4 x 2 inch, grade 2

1шт.

3

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

4

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch

4шт.

5

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

7

141771C2

COUPLING,27.05mm ID x 33.4mm OD x 36mm L

- 1-7/16 inch (36 mm) long

2шт.

8

439-1432

HEADED PIN,1/4" x 2", G2

PIN - headed, 1/4 x 2 inch, grade 2

2шт.

9

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

10

427-3175

CLEVIS PIN,4.78mm OD x 44.45mm L

PIN - clevis, 3/16 x 1-3/4 inch, hardened

2шт.

11

585614R1

PIN

- quick attach

2шт.

12

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch

4шт.

14

141770C2

BAR

SHAFT - drive, hex, 22 (7/8) x 990 mm (39 inch) long, fertilizer

1шт.

15

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

1шт.

16

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

18

472344R3

SPROCKET

- idler

2шт.

19

432-1216

COTTER PIN,3/16" x 1"

2шт.

20

137465C92

CHAIN (AG)

CHAIN ASSEMBLY - drive, use 57 links from 569088R91 bulk chain, plus (1) 1277927C91 connecting link, see below

1шт.

21

141074C2

ARM

- chain tightener

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

26

141063C2

SPROCKET

- triple, 20, 34 and 36 teeth

1шт.

27

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

28

144812C2

SPACER

- 27 x 33 x 17 mm

1шт.

29

141572C2

COLLAR

HUB - sprocket

1шт.

30

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.

1277927C91

LINK

- connecting

1шт.
