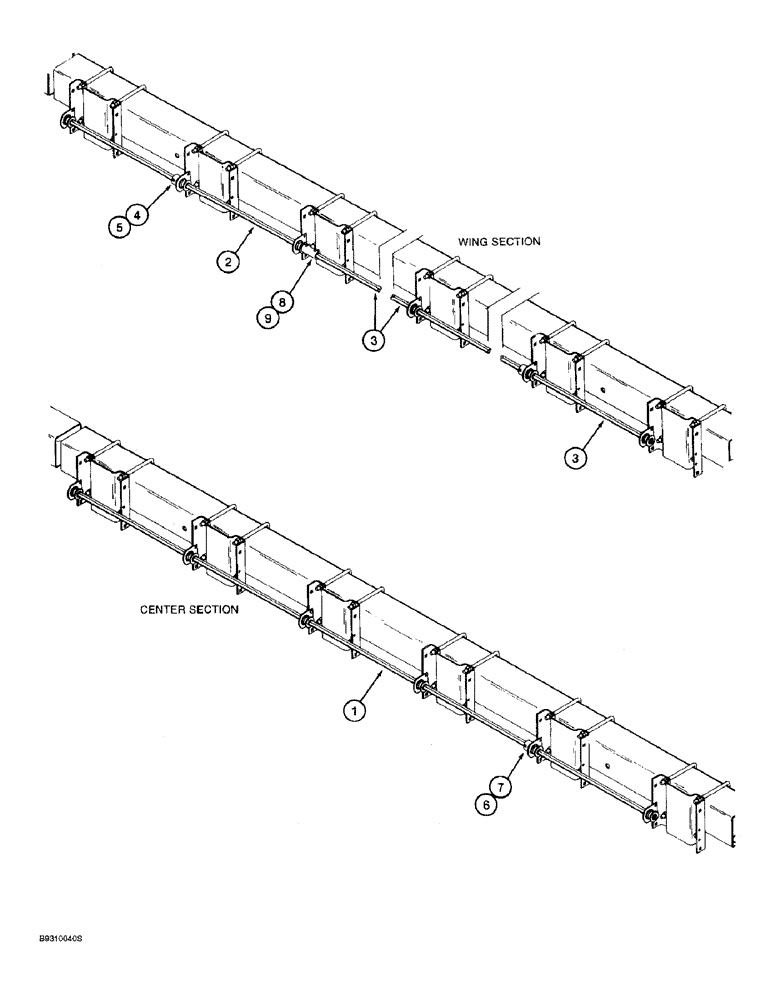

Запчасти Case IH 955 (9B-56) - GRANULAR CHEMICAL DRIVE, 24 ROW NARROW - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1254215C1

BAR

SHAFT - drive, hex, 22 (7/8) x 3885 mm (153 inch) long, center

1шт.

2

117008A1

SHAFT

- drive, hex, 22 (7/8) x 1701 mm (67 inch) long, wing

2шт.

3

128984A1

SHAFT

- drive, hex, 22 (7/8) x 4597 mm (181 inch) long, wing

2шт.

4

141572C2

COLLAR

HUB - sprocket, wing

2шт.

5

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

4шт.

6

141572C2

COLLAR

HUB - sprocket, center

1шт.

7

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

8

1254283C1

COUPLING

COUPLING - 3-9/16 inch (90 mm) long

2шт.

9

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

8шт.
