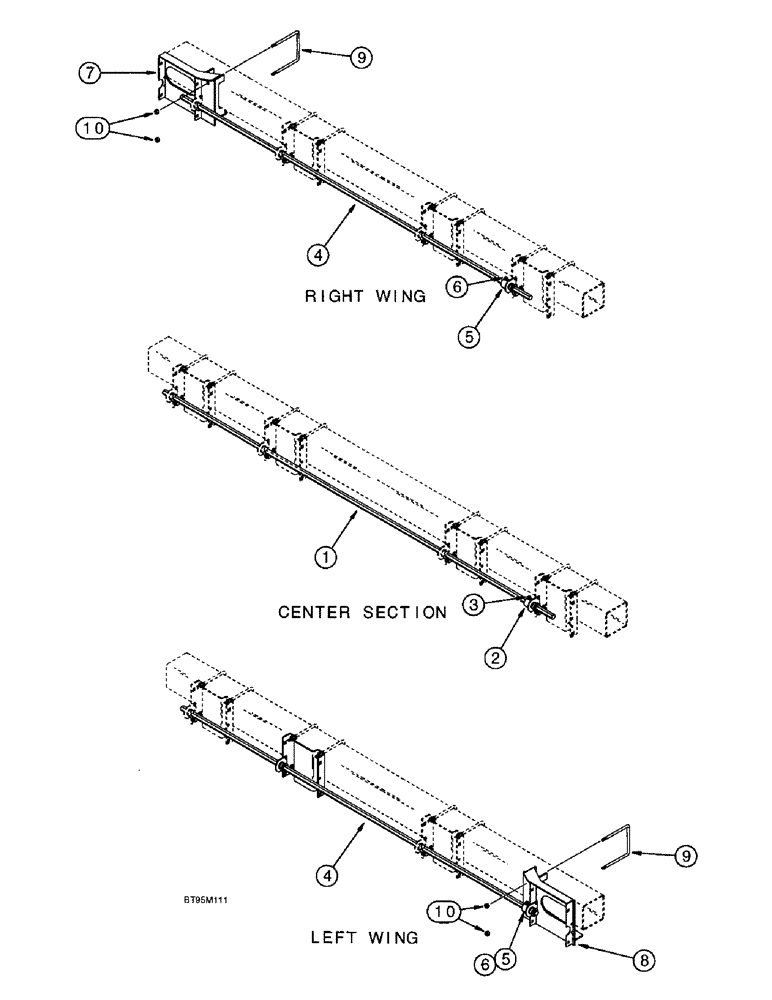

Запчасти Case IH 955 (9B-54) - SEED, DRY FERTILIZER AND GRANULAR CHEMICAL DRIVES, 12 ROW WIDE - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

176895A1

BAR

SHAFT - drive, hex, 22 (7/8) x 3210 mm (126-3/8 inch) long, center section

1шт.

2

141572C2

COLLAR

HUB - sprocket, drive, center section

1шт.

3

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

4

176895A1

BAR

SHAFT - drive, hex, 22 (7/8) x 3210 mm (126-3/8 inch) long, wing section

2шт.

5

141572C2

COLLAR

HUB - sprocket, drive, wing section

2шт.

6

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

4шт.

7

182982A1

BRACKET

- shaft support, right-hand wing

1шт.

8

182981A1

BRACKET

- shaft support, left-hand wing

1шт.

9

194514A1

U-BOLT,3/4" - 10 x 9.75"

- 3/4 inch NC, 7 x 9-3/4 inch

2шт.

10

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.
